WHO defined polycythemia vera (PV) and half of
patients with essential thrombocythemia (ET) patients have low serum
erythropoietin (EPO) levels, and carry the JAK2V617F mutation.
Clinical, laboratory, molecular and pathologic (CLMP) criteria for the JAK2V617F
positive ET patients comprise three phenotypes of ET: normocellular ET
(WHO-ET), hypercellular ET due to increased erythropoiesis (prodromal PV) and
ET with hypercellular megakaryocytic-granulocytic myeloproliferation (EMGM or
masked PV). JAK2V617F mutation load is low and stable in
heterozygous normocellular ET and high in heterozygous homozygous JAK2 mutated
PV and masked PV. JAK2V617F mutation load is related to MPN disease
burden in terms of splenomegaly, constitutional symptoms and myelofibrosis.
Five distinct clonal MPNs can be distinguished: JAK2V617F-positive
ET and PV; JAK2 exon 12 PV; JAK2 wild type ET and MF carrying the MPL515;
JAK2 wild type ET caused by somatic mutations in the calreticulin (CALR) gene. Bone marrow features in JAK2V617F mutated ET and
PV are similarly featured by medium sized to large (pleomorphic) megakaryocytes
with only a few giant forms. Bone marrow histology in MPL515 positive
ET and MF show clustered small and giant megakaryocytes with hyperlobulated
stag-horn-like nuclei, in a normocellular bone marrow with no features
of PV. Bone marrow
histology in the novel third MPN entity of CALR mutated ET and MF patients is
dominated by dense clusters of large immature dysmorphic megakaryocytes with
bulky (cloud-like) hyperchromatic nuclei, which are described in primary
megakaryocytic granylocytic myeloproliferation (PMGM), and never seen in JAK2V617F , JAK2
exon 12 and MPL515 mutated MPN.
INTRODUCTION
The clinical and
pathological features for prodromal, erythrocythemic and polycythemic stages of
PV are variable and featured by increased erythrocytes above 6 × 1012/L,
increased leukocyte alkaline phosphatase (LAP) score (increased
CD11bexpression), normal or increased platelets, leukocytes and spleen size,
and by characteristic bone marrow features with increased pleomorphic large

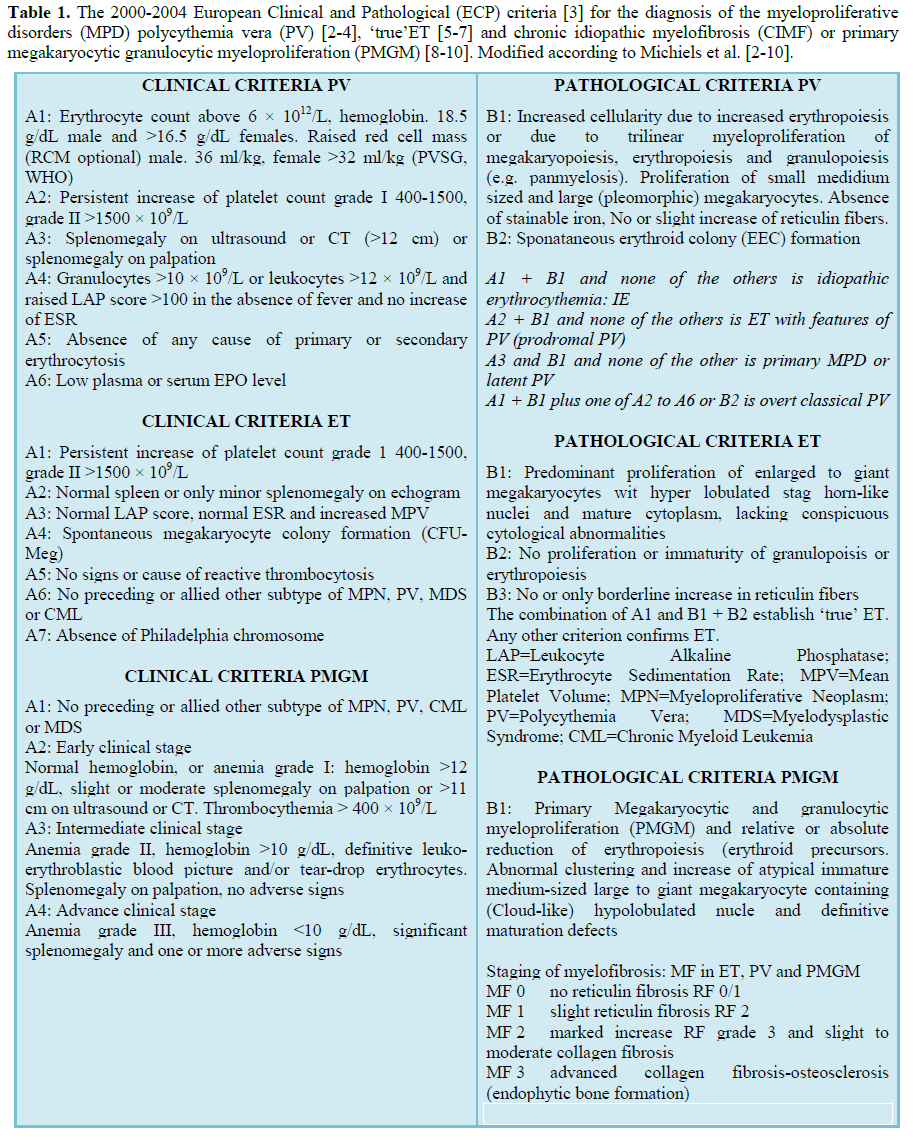

megakaryocytes and erythropoiesis (Table
1) [1-4]. The clinical and bone
marrow histology features of “true” ET has been recognized by Thiele et al. [5,6]
in 1988 and 2005 as clearly distinct from PV. The peripheral blood findings in
“true” ET are featured by high platelet counts, normal values for haemoglobin,
haematocrit, erythrocyte, white blood cells, LAP score, LDH and no or minor
splenomegaly despite platelet counts above 1000 × 109/L [7]. The megakaryocytes in “true” ET are larger than in PV (Table 1) [5-7]. Michiels and Thiele
[7] have defined in 2002 normocellular “true” ET as a distinct MPN entity
different from PV and hypercellular ET associated with prefibrotic primary
myelofibrosis (pPMF) or primary megakaryocytic granulocytic myeloproliferation
(PMGM, Table 1). Bone marrow histology
in PV is typically featured by large pleomorphic megakaryocytes with hyperploid
nuclei in a hypercellular bone marrow due to increased erythropoiesis or
increased trilinear erythrocytic, megakaryocytic and granulocytic
myeloproliferation [2-4]. Georgii et al. [8,9] discovered a third entity of primary myeloproliferative disease
(MPD) characterized by chronic or primary megakaryocytic granulocytic myelosis
(CMGM/PMGM) in the absence of reticulin or collagen fibrosis in bone marrow

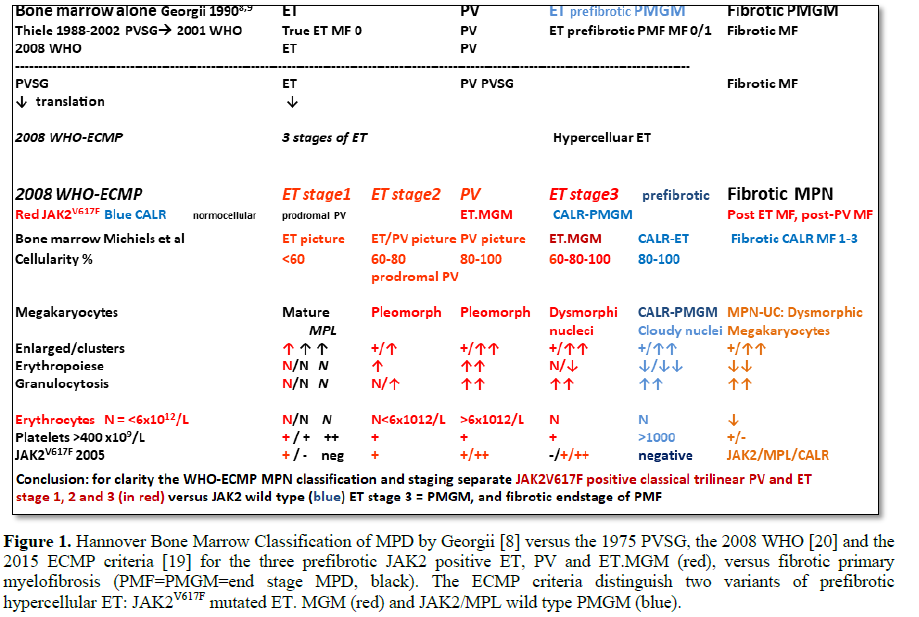

biopsy material (Figure 1). The
Hannover Bone Marrow Classification of the MPDs distinguished three primary
prefibrotic MPDs ET, PV and CMGM from the advanced fibrotic stages of MPD [8].
Myelofibrosis (MF) is a secondary event in all variants of MPD, the labeling of
chronic idiopathic myelofibrosis or primary myelofibrosis (CIMF or PMF) is a
contradiction of terms [8,9]. Georgii et al. [8,9] replaced the term CIMF and
PMF by CMGM and used grading of myelofibrosis (MF) for staging of early, overt
and advanced stage of MF in patients with ET, PV and CMGM. Michiels replaced in
1997 the term CMGM by essential or primary MGM (PMGM) as the third JAK2 wild
type MPN entity without features of PV or CML [10-12]. EMGM or PMGM
(hypercellular JAK2 wild type ET) is the third MPN entity dominated by an
increase of clustered atypical dysmorphic megakaryocytes due to increases of
cellular and nuclear size and bulky nuclei with clumsy lobuli and irregular
roundish shaped form (so-called cloud-like nuclei), which are never described
in JAK2 mutated ET and PV [8-12].
HANNOVER BONE CLASSIFICATION AND WHO CRITERIA FOR THE MPDS ET, PV AND
PMGM
According to strict morphological, biochemical and cytogenetic criteria
for BCR/ABL-positive ET and CML is a
separate malignant and individual entity, whereas ET, PV and CMGM form a
chronic proliferation of three hematopoietic cell lines [13]. The Hannover Bone
Marrow Classification of MPD (Table 1)
[8,9,13] separated the Ph-positive or BCR/AB-positive
CML and ET from the Ph- or BCR/ABL-negative
MPDs ET, PV and CMGM based on distinct bone marrow histology findings for each
of the three MPDs ET, PV and CMGM [8-12]. The difference in size and morphology
of small monolobulated megakaryocytes in Ph-positive CML and ET from the large
pleomorphic megakaryocytes in the Ph-negative MPDs ET and PV is so obvious that
cytologists and pathologists can easily distinguish [13,14]. Prefibrotic
CMGM/PMGM is the third distinct entity of primary MPD in the absence of
reticulin or collagen fibrosis in bone marrow biopsy material [15]. The
Hannover Bone Marrow Classification distinguished the three primary prefibrotic
MPDs ET, PV and CMGM/PMGM from advanced fibrotic stages of MPD (Figure 1) [8,9]. Myelofibrosis (MF) is
a secondary event in all variants of MPD. Consequently, the terms chronic
idiopathic myelofibrosis (CIMF) or primary myelofibrosis (PMF) are a
misconception. Georgii replaced the term CIMF and PMF by CMGM and used grading
of myelofibrosis (MF, Table 1) for
staging of the early, overt and advanced MPDs ET, PV and CMGM [8,9].
Prefibrotic CMGM/PMGM is the third MPD entity without features of ET, PV or CML
and its diagnosis is based on the presence of loose to dense clustering of
large megakaryocytes with immature cytoplasm and cloud-like nuclei not seen in
ET, PV and CML [8-15]. The term CMGM of the Hannover Bone Marrow Classification
of the MPDs is illogically replaced in the 2001 WHO classification into chronic
idiopathic myelofibrosis (CIMF) [16,17] and has been labeled as PMF in the 2008
WHO classification (Figure 1) [18].
The diagnosis of prefibrotic CMGM is based on the association of hypercellular
ET with the presence of large immature megakaryocytes with immature cytoplasm
and cloud-like nuclei not seen in ET and PV (Table 1). The 2015 ECMP classification of myeloproliferative
neoplasms (MPN) took over the CMGM concept and used the term primary
megakaryocytic granulocytic myeloproliferation (PMGM, Table 1 and Figure 1) [19].
The 1975 PVSG
criteria exclude stage 1 idiopathic erythrocythemia (IE) and do not recognize
prodromal PV by definition [20]. According to ECP criteria IE is featured by
increased red cell mass, normal spleen size, normal leukocyte and platelet
counts and no clinical or laboratory evidence of primary or secondary
erythrocytosis and a PV bone marrow histology. ECP defined bone marrow
histology has a specificity and sensitivity near to 100% to differentiate
between the MPDs ET and PV from reactive thrombocytosis and all variants of
primary or secondary erythrocytoses (Table
1) [2,3]. The PV experts in the UK and France did not use bone marrow
biopsy for the diagnostic differentiation between PV and primary or secondary
erythrocytosis and therefore overlooked stage 1 erythremic PV by definition [21,22].
In 1979 idiopathic erythrocythemia (IE) has been defined by increased RCM and
not meeting the A and B criteria of the PVSG [21]. IE represent a significant
number of early stage erythremic PV of about 10% to 15% at time of PV
presentation [21-23]. A low serum EPO level has also been described about half
of ET patients, which are to be regarded as prodromal phases (forme frusta) of
PV [17,23]. Standardized and easy-to-perform commercial serum EPO assays
provide a reliable and accurate criterion in support of the diagnosis of either
erythrocytosis or PV and ET [24,25]. In a multicenter study on 241 patients,
Mossuz et al. [25] identified two thresholds, allowing a specific and direct
diagnosis of 65.6% (65-99) of untreated PVSG-defined PV (EPO<1.4 U/L) and
19.7% (13 of 66) of SP (EPO>13.7 U/L) [25]. About 50% of patients with
absolute erythrocytosis could unequivocally diagnose as PV or erythrocytosis by
the combination of increased red cell mass (RCM) and serum EPO levels.
JAK2V617F
MUTATED TRILINEAR MPNS IN ET AND PV: VAINCHENKER’S DISEASE
In 1950, Dameshek (1900-1969) proposed two
highly speculative possibilities as the cause of trilinear PV erythrocythemia,
thrombocythemia, granulocythemia: either excessive bone marrow stimulation by
an unknown factor, or the lack or diminution of an inhibitory factor [26]. This
one cause hypothesis of PV as a trilinear MPD has been proven to be correct by
Vainchenker in France of the somatic JAK2Vainchenker617Franc
mutation as the driver cause of trilinear MPNs ET, PV and MF [27]. On position 617 of the JAK2 JH2 domain Valine (V) is replaced by Fenylalanine (F) in the JAK2V617F mutation and induces a loss of
inhibitory activity of the JH2 pseudokinase part on the JH1 kinase part of
JAK2, leading to enhanced activity of the normal JH1 kinase activity of JAK227.
The JAK2V617F makes the mutated hematopoietic stem cells
hypersensitive to hematopoietic growth factors TPO EPO, IGF1, SCF and GCSF,
resulting in PV as a trilinear MPN (Table
1). Detection of JAK2V617F has become the
first intention diagnostic test for erythrocytosis [17]. The prevalence of the JAK2 V617F
mutation in PVSG defined PV is 95% and about 50% in ET and MF [17]. The JAK2V617F mutation load is usually low
in ET, less than 10 to 50% of the granulocytes are JAK2V617F
positive (heterozygous) and either low or high in PV with less than 50%
(heterozygous homozygous) or high between 50 to 100% (homozygous) of the
granulocytes positive for the JAK2V617F mutation [28-30]. Patients with hypercellular ET and PV homozygous
for the JAK2V617F mutation patients are at high risk for myeloid
metaplasia of the spleen with splenomegaly and bone marrow transformation into
myelofibrosis (MF) and the percentage of JAK2V617F positive
granulocytes in PV may range from rather low to 100% for JAK2V617F
during the long-term follow-up [28-30]. At
the bone marrow hematopoietic stem cell level, ET patients are heterozygous and
PV patients hetero/homozygous or homozygous for the JAK2V617F

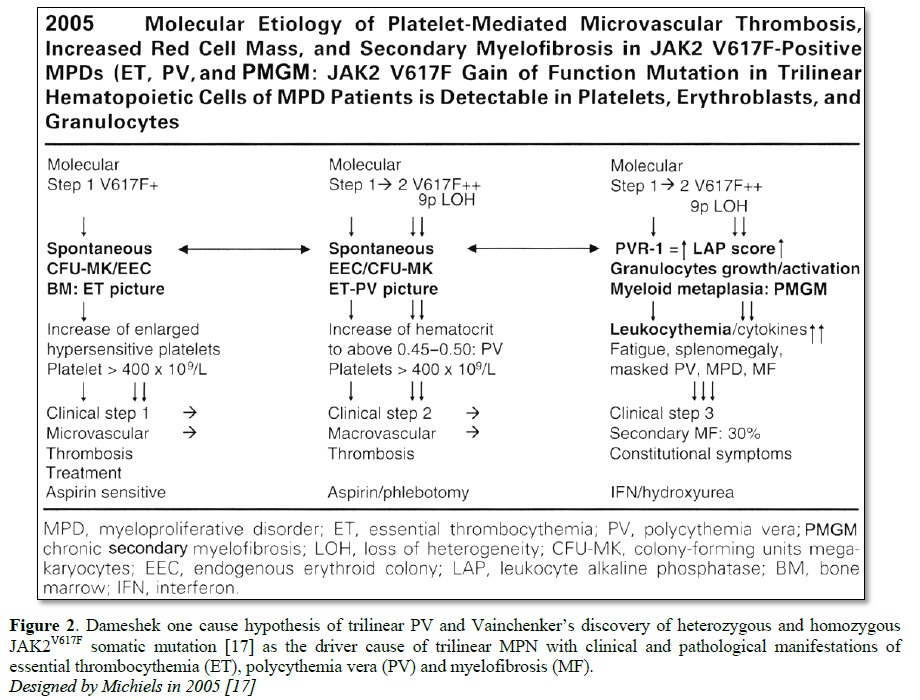

mutation (Figure 2) [17]. The 2005 concept of Vainchenker and Michiels
[17] is that heterozygous JAK2V617F mutation is enough to
constitutively activate TPO mediated megakaryopoiesis to induce ET with the
production of constitutively activated (hypersensitive) platelets (Figure 2) [17]. Homozygous JAK2V617F mutation
is needed to more pronouncedly stimulate EPO mediated erythropoiesis compared
to TPO mediated megakaryocpoiesis. PV with allele load less than 50% indeed are
hetero/homozygous at the EEC level in blood and bone marrow for the JAK2V617F
mutation, whereas ET patients are heterozygous with a maximal JAK2V617F
mutation load of 50% [31,32]. The second molecular hit of the loss of 9p
heterogeneity (9P LOH) is due to the amplification of the JAK2V617F
locus through mitotic amplification resulting in chromosome 9p loss of
heterogeneity (9pLOH) indicating homozygous JAK2V616F mutation (Figure 2). Godfrey et al. studied the JAK2 mutation status of BFU-E grown in low erythropoietin
conditions in 77 patients with PV or ET [33]. Using microsatellite PCR to map loss-of-heterozygosity
breakpoints within individual colonies, homozygous mutant colonies were absent
or present in low percentages in heterozygous ET, but prevalent and common in
patients with JAK2V617F-positive
PV and JAK2 exon
12-mutated PV. PV was distinguished from ET by expansion of a dominant
homozygous subclone, the selective advantage of which is likely to reflect
additional genetic or epigenetic lesions [33]. Combined heterozygous homozygous or homozygous
JAK2V617F mutation is associated with pronounced constitutively
activation and genetic instability of megakaryopoiesis, erythropiesis and
granulopoiesis in the bone marrow as the cause of hypercellular trilinear PV
with a high risk of myelofibrotic progression.

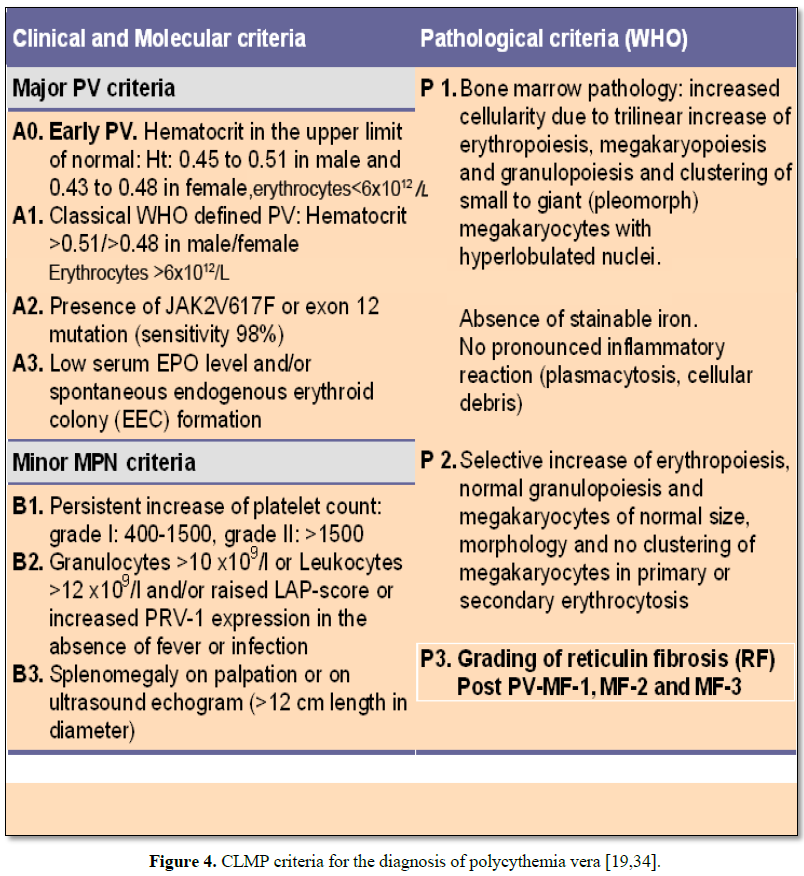

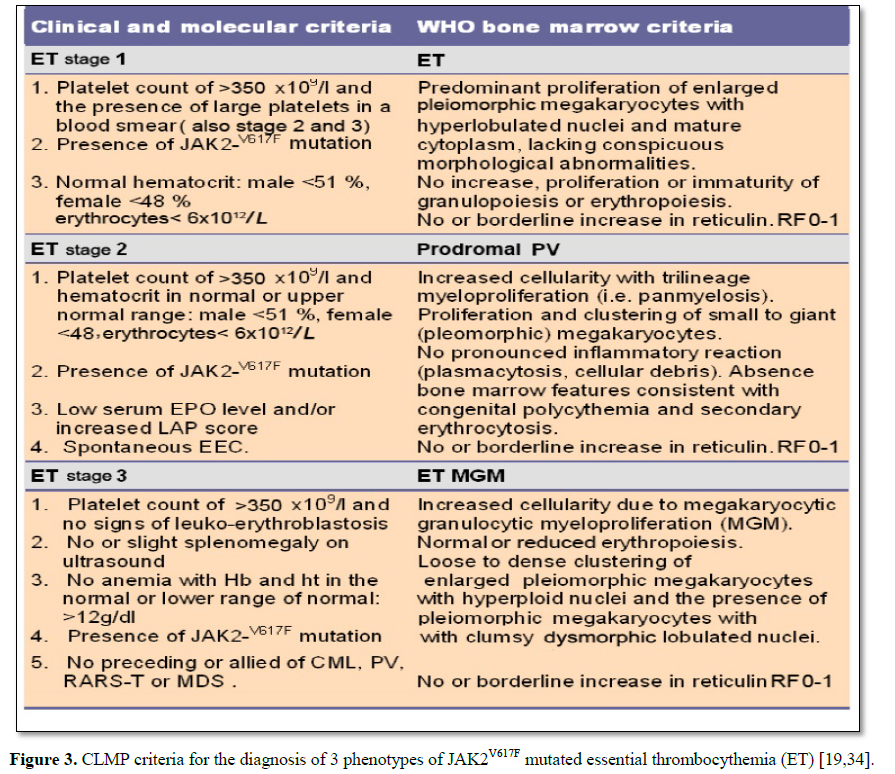

According to WHO [18] and ECMP criteria (Figures 3 and 4) [19,34], heterozygous JAK2V617F
positive ET is defined by a normocellular with slight increase of
erythropoiesis in the bone marrow or with a hypercellular bone marrow due to

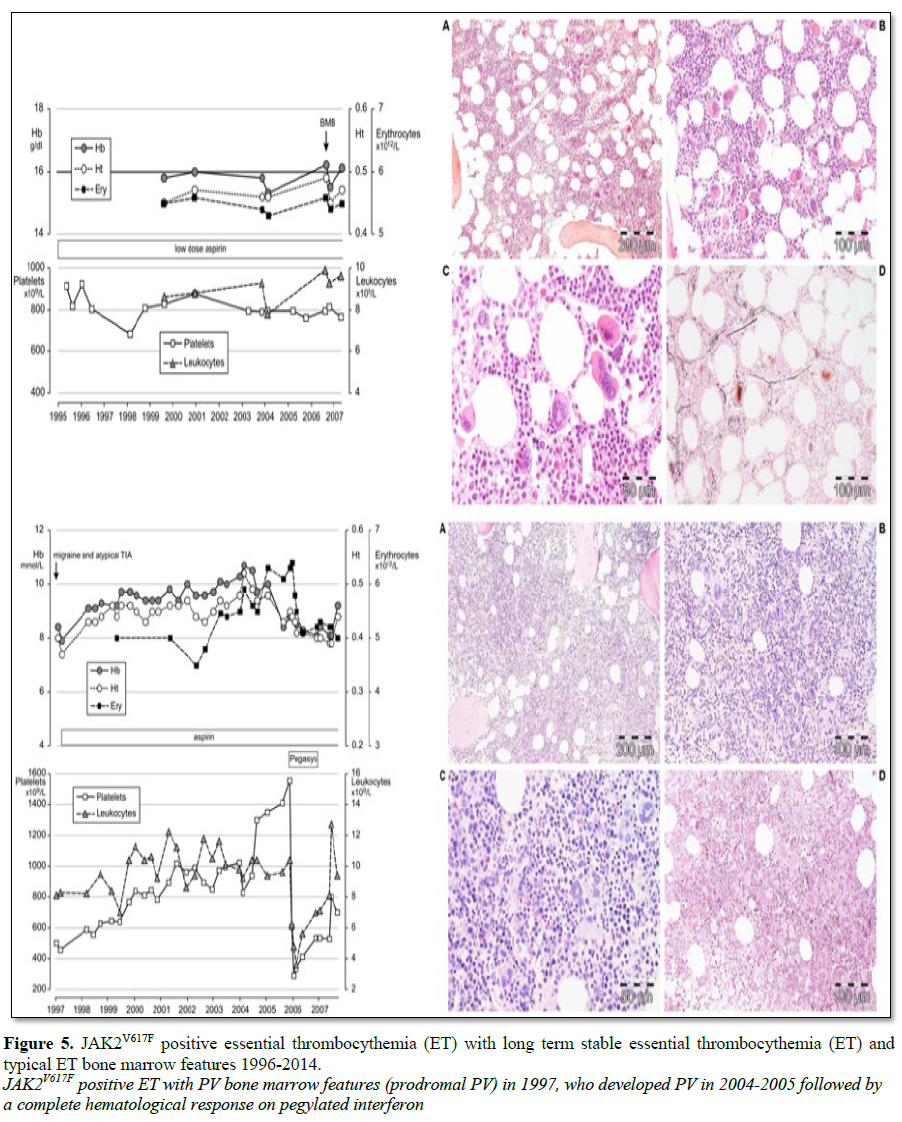

increased erythropoiesis (Figures 5 and 6). JAK2V617F mutated WHO defined PV typically shows a hypercellular
bone marrow histology due to increase
of trilinear hematopoiesis of megakaryopoiesis, erythropoiesis and
granulopoiesis (panmyelosis of Dameshek1,26) and no or slight
increase of reticuline fibers (Figures 3
and 5 and 7) [4,19,34]. The UK
MPN Study Group assessed the clinical features in the cohort of 806 PVSG
defined ET patients subdivided in 414 JAK2V617F positive and 362
JAK2 wild type ET and evaluated the bone marrow features in 393 ET patients [35,36].
JAK2V617F positive ET patients had multiple features of PV such as significantly
higher hemoglobin, lower serum EPO and ferritin, higher neutrophils, bone
marrow erythrocytosis and granulocytosis, more venous thrombosis and a higher
rate of polycythemic transformation. PVSG defined JAK2 wild type ET had
significant higher platelet counts (962, range 668-1535 × 109/L)
than JAK2V617F-positive ET (846, range 632-1222 × 109/L) [35].
In the UK Primary Thrombocythemia 1 (PT-1) study, bone marrow trephine of 209
JAK2V617F positive and 184 JAK2 wild type ET was independently
assessed by 3 blinded hematopathologists who did not know the JAK2 mutation
status [36]. The overall cellularity was significantly increased in JAK2V617F
mutated ET as compared to JAK2 wild type ET,
indicating that increased erythroid and granulocytic cellularity appears to be
a main feature of prodromal PV, masked PV (ET.MGM) and classical PV [4,17,19,34].
JAK2exon12 mutated PV negative for the JAK2V617F
mutation
The finding of the JAK2exon12
mutations in patients with JAK2V617F negative PV or idiopathic
erythrocytosis further confirms the strong association between the JAK2
mutations and MPN [37-39]. The 5% PV patients negative for JAK2V617F
are frequently heterozygous for exon 12 JAK2 mutations and usually present with
early stage PV with a favourable outcome and normal life expectancy. JAK2exon12 mutations in 10 idiopathic
erythrocytosis (IE) patients showed increased red cell mass and could be
diagnosed in 6 patients as PV in 6 and IE in 4 cases [37]. Bone marrow biopsies
in 5 JAK2exon12 positive patients showed characteristic erythroid hyperplasia
with some morphological abnormalities of the megakaryocyte and normal
granulopoiesis in bone marrow biopsy specimens clearly different from primary
or secondary erythrocytosis. The bone marrow histology in 7 cases of JAK2exon12 mutated MPN (IE in 4, PV in 2, MF in 1) revealed hyperplasia of atypical
small to medium-sized large megakaryocytes was present in all (Figure 8) [38,39], which differs from JAK2V617F mutated ET and PV (Figures 4-6). At
diagnosis, JAK2exon12 mutated IE or PV patients presented aquagenic pruritis and/or
erythromelalgia in 3 and microvascular events including headache, dizziness,
blurred vision and distal extremity numbness (aspirin responsive platelet
thrombophilia or sticky platelet syndrome) in 4 at platelet counts between 152
and 790 × 109/L
(of whom 5 below and 2 above 300 × 109/L) [38,39]. The JAK2exon12
MPN cases lack the prominent clusters of large megakaryocytes with
hyperlobulated nuclei that characterize JAK2V617F-positive prodromal
and classical PV. A spectrum of small to medium sized megakaryocyte is seen in JAK2exon12 PV bone marrows with a predominance of smaller forms with atypical
nuclei with various degrees of monolobation to hyperlobation and abnormal
chromatin distribution (Figure 8) [39].
BONE MARROW HISTOLOGY IN MPL515 MUTATED THROMBOCYTHEMIA
Within the JAK2 wild type MPN, the prevalence of the
MPL515 mutation as the cause of ET is 3% in the Vannucchi study [30]
and 8.5% in the UK studies. In the study of Vannucchi et al. [30], patients with JAK2 wild type ET carrying the MPL515
mutation present with typical microvascular erythromelalgic acrocyanosis and
migraine-like ocular or cerebral ischemic events (Sticky Platelet Syndrome) but
have no clinical, laboratory and bone marrow features of prodromal PV at
diagnosis, do not evolve into overt PV during follow-up, have normal serum EPO, normal ferritin levels, absence
of spontaneous endogenous erythroid colonies (EEC). Bone marrow histology from
a patient with JAK2 wild type ET carrying the MPLW515L mutation
displayed clusters large megakaryocytes with a greater number of giant
megakaryocytes with hyperlobulated stag-horn nuclei in a normal cellular bone
marrow and no increase of erythropoiesis (Figure
9). We recently described the essential differences in bone marrow histopathology
features of differential diagnostic significance between patients with MPL515
mutated (N=12) versus JAK2V617F mutated MPN [34]. First, the presence of clustered small and
giant megakaryocytes with deeply lobulated stag-horn like nuclei (Figures 9-11) in ET carrying the MPL515
mutation are not seen in JAK2V617F
positive ET, prodromal PV and classical PV.
The pleomorphic medium to large megakaryocytes in JAK2V617F
mutated ET and PV in bone marrow smears and bone marrow biopsies were
comparable regarding size and degree of pleomorphy (Figures 4-6).
Second, there was local increase of erythropoiesis in areas of loose
clustered pleiomorphic megakaryoctyes in normocelluar JAK2V617F
mutated ET and prodromal PV, which is not seen in MPL515 mutated ET (Figure 9). Third,
JAK2 wild type MPL515 mutated ET have no clinical, laboratory and
bone marrow features of prodromal PV at diagnosis (Table 1), do not evolve into PV during follow-up and have normal LAP score, serum EPO and ferritin
levels. Laboratory and bone marrow
histology evaluations have the diagnostic potential to separate the JAK2V617F
mutated ET and prodromal PV with increased LAP score, low serum EPO and
pleomorphic megakaryocyte morphology from MPL515 mutated ET with
normal LAP score and serum EPO and giant megakaryocytes with staghorn-like
nuclei similar to “true” ET (Table 1) [34].
CLMP CRITERIA OF CALR MUTATED THROMBOCYTHEMIA AND MYELOFIBROSIS
Dr. Kralovics and his team discovered calreticulin (CALR) mutation in
78 of 311 (25%) ET patients, in 72 of 203 (35%) MF patients, in none of 382 PV
patients [40-44]. 195 (67%) of 289 JAK2 wild type ET and 105 (80%) of 120 wild
type MF carried one of the CALR mutations.
Green and his team found somatic CALR mutations in 110 of 158 JAK2 and MPL wild
type MPN, including 80 of 112 (70%) ET patients, 18 of 32 (56%) MF patients [45].
CALR exon 9 mutations were found in 26 of 31 (84%) patients with JAK2/MPL wild
type MF, were absent in all 120 patients who had JAK2 or MPL mutations, were
present in 10 of 120 (8%) MDS patients (RA in 5 of 53, RARS in 3 of 27 and
RAEB-T in 2 of 27) and in one patient each with CMML and atypical CML. CALR
mutations are mutually exclusive with both JAK2V617F and MPL515
mutations [44,45].
In eight consecutive newly diagnosed CALR positive ET cases in 2014 we
found consistent bone marrow characteristics of hypercellular ET as the
presenting feature of prefibrotic and early fibrotic stages of PMGM. CALR mutated ET patients did not present with aspirin sensitive
microvascular disturbances of erythromelalgic, cerebral and ocular ischemic
manifestations (Sticky Platelet Syndrome) as the specific presenting
manifestations JAK2V617F mutated myeloproliferative thrombocythemia. Bone marrow histology in
typical prefibrotic CALR ET (Figure 12)
and in early fibrotic CALR myelofibrosis (MF, Figure 12) show dysmorphic megakaryocytes with definite
abnormalities of maturation with bulky (bulbous) hyperchromatic nuclei and some
disturbances of the nuclear cytoplasmic ratio consistent with CALR mutated
PMGM, which are not seen in MPL515 mutated ET (Figure 9) and also not in JAK2V617F mutated ET,
prodromal PV and classical PV (Figures 4-6). The
JAK2/MPL wild type but CALR-positive ET and MF patients appeared to become the
third distinct MPN entity with typical characteristics of CMGM or PMGM without

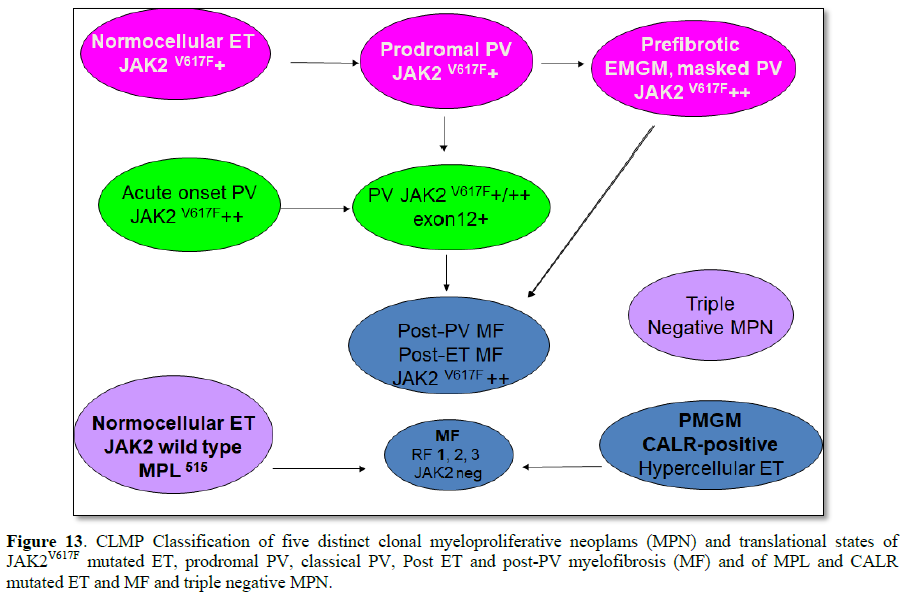

features of PV (Figure 13). Absence of clinical, laboratory and bone
marrow features of PV and no polycythemic transformation has been observed in CALR mutated patients [46-48]. The
evolution of ET to MF belong to the natural history of all molecular variants
of the MPNs. Life expectance was
significantly longer in CALR mutated MF
patients but the mean age of CALR mutated MPN was 10 years younger as compared
to those with a JAK2V617F or MPL515 mutation. The
overall survival of JAK2/MPL wild type MF carrying one of the CALR mutations
was 23 years as compared to 14.4 years of MF patients with the JAK2V617F
or MPL515 mutation MF [46,47]. Patients with JAK2V617F
mutated ET and PV had a similar high risk of thrombosis, which was twice that
of thrombocythemia patients with CALR
mutation [46,47]. The lower incidence of thrombotic complications in JAK2/MPL
wild type ET is very likely related to the fact that CALR-positive ET and PMF
patients had normal or low normal hemoglobin and leukocyte counts as compared
to those in JAK2V617F mutated ET patients.
DISCUSSION AND CONCLUSION
With the advent of the JAK2Vainchenker617France mutation all latent, masked, early and overt stages of PV will be picked up more than 5 to 10 years earlier by the CLMP criteria as compared to the PVSG criteria. Heterozygous JAK2V617F mutated ET and hetero/homozygous JAK2V617F mutated PV and post-ET MF or post-PV MF represent different phenotypes of a single distinct MPN. JAK2 wild type ET and MF carrying one of the MPL515 mutations is the second distinct MPN without features of PV at diagnosis and during follow-up (Figure 13). In a prospective study of 59 JAK2V617F positive ET and 44 JAK2 wild ET cases, Piche et al. [40] described that JAK2V617F mutated ET patients have PV-like morphological bone marrow changes of medium sized to large pleomorphic megakaryocytes similar to our findings in newly diagnosed JAK2V617F mutated ET, prodromal PV patients and PV patients. JAK2V617F positive ET and prodromal PV patients usually have low serum EPO, increased LAP score and slight to moderate increased bone marrow cellularity due to increased erythropoiesis. Increase of bone marrow erythropoiesis, granulopoiesis and serum LDH levels and spleen size are more pronounced in advanced JAK2V617F mutated ET (EMGM or masked PV) at higher JAK2V617F mutation allele burden. Clustered large and giant megakaryocyte with hyper lobulated ‘stag horn’ nuclei are rare in JAK2 mutated MPN, but typically present in MPL515 mutated ET patients with no features of PV in the bone marrow consistent with the diagnosis of ‘true ’ET and normal blood values for serum EPO, ferritine levels and LAP score [41,42]. The prevalence of MPL515 mutated ET or MF patients ranges from 5 to 10% of the JAK2 wild type MPN population [41,42]. In the large collaborative European study of 176 MPN cases with the MPL515 mutations W515L and W515K were detected in 110 and in 58, respectively [43]. The overall MPL mutation allele levels in granulocytes were lower (25%) in W515L (N=106) than in W515K (37%, N=32). Of the 138 cases (ET, N=99; MF, N=36), the median W515L mutation allele levels were significantly lower (21%) in ET than those (46%) in MF [43]. In 254 WHO-defined PMF patients the JAK2-, MPL- and CALR-mutations were detected in 58%, 8.3 and 25% respectively and 8.7% were triple negative [48]. The median overall survival (OS) among 253 WHO-defined PMF patients in 83 CALR-, 21 MPL- and 147 JAK2-mutated cases and in 22 triple negative cases was 8,2, 4.1, 4.3 and 2.5 years. As compared to CALR wild type MF, CALR-mutated MF patients were younger, had higher platelet count, lower leukocyte count, higher hemoglobin (less anemic) and lower DIPSS-plus score. CALR-mutated MF patients had a favorable impact on median survival as compared to CALR-negative MF patients whether ASXL1-negative or positive [48]. The etiology of triple JAK/MPL/CALR negative MF remains elusive whether they represent MPN or MDS. The awareness of the molecular heterogeneity of the MPNs including JAK, MPL and CALR mutation on top of epigenitic factors reflect the funeral of the term primary myelofibrosis (PMF) [49,50]. The PVSG and WHO defined term PMF [16-18,49] can easily be replaced by CALR-, MPL515-and JAK2V617F-ET and secondary myelofibrosis (MF) with various degrees of splenomegaly, hypersplenism and myelofibrotic transformation of the bone marrow (Figure 13) [8,9,34].
1. Michiels
JJ (2013) Physiopathology, etiologic factors, diagnosis and course of
polycythemia vera as related to therapy according to Dameshek 1940-1950. Turk J
Hematol 30: 109-110.
2. Michiels
JJ, Barbui T, Finazzi G, Fruchtman SM, Kutti J, et al. (2000) Diagnosis and
treatment of polycythemia vera and possible future study designs of the PVSG.
Leukemia Lymphoma 36: 239-253.
3. Michiels
JJ, Kvasnicka HM, Thiele J (2004) Myeloproliferative disorders essential
thrombocythemia, polycythemia vera and chronic idiopathic myelofibrosis. MPD.
Avaialble at: http://www.mpn-stichting.nl/doctors_brochure_2004.pdf
4. Michiels
JJ, TenKate F, Schroyens W, Berneman Z, De Raeve H, et al. (2014) The european
clinical molecular and pathological (ECMP) criteria and the 2007/2008 revisions
of the World Health Organization for the diagnosis, staging of prefibrotic
myeloproliferative neoplasms carrying the JAK2V617F mutation. Turk J Hematol
31: 239-254.
5. Thiele
J, Zankovich R, Schneider G, Kremer B, Fischer R, et al. (1988) Primary
(essential) thrombocythemia versus polycythemia rubra vera. A histomorphometric
analysis of bone marrow features in trephine biopsies. Analyt Quat Cytol Histol
10: 375-382.
6. Thiele
J, Kvasnicka HM, Diehl V (2015) Initial (latent) polycythemia vera with
thrombocytosis mimicking essential thrombocythemia. Acta Hematol 113: 213-219.
7. Michiels
JJ, Thiele J (2002) Clinical and pathological criteria for the diagnosis of
essential thrombocythemia, polycythemia vera and idiopathic myelofibrosis
(agnogenic myeloid metaplasia). Int J Hematol 76: 133-145.
8. Georgii
A, Vykoupil KF, Buhr T, Choritz H, Döhler U, et al. (1990) Chronic
myeloproliferative disorders in bone marrow biopsies. Path Res Pract 186: 3-27.
9. Georgii
A, Buhr T, Buesche G, Kreft A, Choritz H, et al. (1996) Classification and
staging of pH-negative myeloproliferative disorders by histopathology from bone
marrow biopsies. Leukima Lymphoma 22: 15-29.
10. Michiels
JJ (1997) Diagnostic criteria of the myeloproliferative disorders (MPD)
essential thrombocythemia, polycythemia vera and chronic megakaryocytc
granulocytic metaplasia: ET, PV and CMGM. Neth J Med 51: 57-64.
11. Michiels
JJ, Kutti J, Bazzan M, Gugliotta L (1999) Diagnosis, pathogenesis and treatment
of the myeloproliferative disorders ET, PV and EMGM. Neth J Med 54: 46-62.
12. Michiels
JJ (1996) The chronic myeloproliferative disorders essential throbocythemia,
polycythemia vera and megakaryocytic myeloid metaplasia. Leukemia Lymphoma 22:
1-172.
13. Michiels
JJ, Prins ME, Hagemeijer A, Brederoo P, van der Meulen J, et al. (1987)
Philadelphia chromosome-positive thrombocythemia and megakaryoblast leukemia.
Am J Clin Pathol 88: 645-652.
14. Michiels
JJ, Pich A, De Raeve H, Gadisseur A (2015) Essential differences in clinical
and bone marrow features in BCR/ABL-positive thrombocythemia compared to
thrombocythemia in the BCR/ABL-negative myeloproliferative neoplasms essential
thrombocythemia and polycythemia vera. Acta Hematol 133: 52-55.
15. Georgii
A, Vykoupil KE, Thiele J (1980) Chronic megakaryocytic granulocytic myelosis.
Virchow Arch [Pathol Anat] 189: 253-268.
16. WHO
(2001) Classification of the chronic myeloproliferative diseases (CMPD)
polycythemia vera, chronic idiopathic myelofibrosis, essential thrombocythemia
and CMPD unclassifiable. In: Jaffe S, Harris NL, Stein H, editors. WHO
Classification of Tumors. Tumors of Haematopoiesis and Lymphoid Tissues. Lyon.
3rd Edn, IARC, pp: 31-42.
17. Michiels
JJ, De Raeve H, Berneman Z, Van Bockstaele D, Hebeda K, et al. (2006) The 2001
World Health Organization (WHO) and updated European clinical and pathological
(ECP) criteria for the diagnosis, classification and staging of the
Ph1-chromosome negative chronic myeloproliferative disorders (MPD). Sem Thromb
Hemostas 32: 307-340.
18. Thiele
J, Kvasnicka HM, Orazi A, Tefferi A, Birgegard G, et al. (2008) Polycythemia
vera, essential thrombocythaemia and primary myelofibrosis. In: Swerdlow SH,
Campo E, Harris NL, eds. WHO Classification of Tumors of Hematopoietic and
Lymphoid Tissues. 4th Edn. Lyon: IARC Press, pp: 40-47.
19. Michiels
JJ, Berneman Z, Schroyens W, Hebeda K, Bot F, et al. (2013) PVSG and the WHO
versus the European Clinical, Molecular and Pathological (ECMP) criteria for
the diagnosis, classification and staging of the myeloproliferative neoplasms.
World J Hematol 2: 71-90.
20. Berlin
NI (1975) Diagnosis and classification of the polycythemias. Sem Hematol 12:
339-351.
21. Pearson
TC, Wetherley-Mein G (1979) The course and complications of idiopathic
erythrocytosis. Clin Lab Hematol 1: 189-196.
22. Najean
Y, Triebel F, Dresch C (1981) Pure erythrocytosis: Reappraisal of a study of 51
cases. Am J Hematol 10: 129-136.
23. Pearson
TC (1998) Diagnosis and classification of erythrocytoses and thrombocythoses.
Bailliere’s Clin Hematol 11: 695-720.
24. Mossuz
P, Girodon F, Donnard M, Latger-Cannard V, Dobo I, et al. (2004) Diagnostic value
of serum erythropoietin level in patients with absolute erythrocytoses.
Hematologica 89: 1194-1198.
25. Mossuz
P (2006) Influence of the assays of endogenous colony formation and serum
erythropoietin on the diagnosis of polycythemia vera and essential thrombocythemia.
Sem Thromb Hemostas 32: 246-250.
26. Dameshek
W (1950) Physiopathology and course of polycythemia vera as related to therapy.
JAMA 142: 790-797.
27. James
C, Ugo V, Le Couédic JP, Staerk J, Delhommeau F, et al. (2005) A unique clonal
JAK2 mutation leading to constitutive signalling causes polycythemia vera.
Nature 434: 1144-1148.
28. Antonioli
E, Guglielmelli P, Pancrazzi A, Bogani C, Verrucci M, et al. (2005) Clinical
implications of the JAK2 V617F mutation in essential thrombocythemia. Leukemia
19: 1847-1849.
29. Passamonti
F, Rumi E, Pietra D, Matteo G, Porta D, et al. (2006) Relation between JAK2
V617F mutation status, granulocyte activation and constitutive mobilization of
CD34+ cells into peripheral blood in myeloproliferative disorders. Blood 107:
3676-3682.
30. Vannucchi
AM, Antonioli E, Guglielmelli P, Longo G, Pancrazzi A, et al. (2007)
Prospective identification of high-risk polycythemia vera patients based on
JAK2V617F allele burden. Leukamia 21: 1952-1959.
31. Scott
LM, Scott MA, Campbell PJ, Green AR (2006) Progenitors homozygous for the V617F
JAK2 mutation occur in most patients with polycythemia vera, but not essential
thrombocythemia. Blood 108: 2435-2437.
32. Moliterno
AR, Williams DM, Isaacs MA, Spivak JL (2008) Phenotypic variability within the
JAK2V617F-positive MPD: Roles of progenitor cell and neutrophil allele burden.
Exp Hematol 36: 1480-1486.
33. Godfrey
AL, Chen E, Pagano F, Ortmann CA, Silber Y, et al. (2012) JAK2V617F
homozygosity arises commonly and recurrently in PV and ET, but PV is
characterized by expansion of a dominant homozygous subclone. Blood 120:
2704-2707.
34. Michiels
JJ, Berneman Z, Schroyens W, De Raeve H (2015) Changing concepts on the
diagnostic criteria of myeloproliferative disorders and the molecular etiology
and classification of myeloproliferative neoplasms. From Dameshek 1950 to
Vainchenker 2005 and beyond. Acta Hematol 133: 36-51.
35. Campbell
P, Scott L, Buck G, Wheatley K, East CL, et al. (2005) Definition of subtypes
of essential thrombocythemia and relation to polycythemia vera based on
JAK2V617F mutation satatus: A prospective study. Lancet 366: 1945-1953.
36. Wilkins
BS, Erber WN, Bareford D, Buck G, Wheatley K, et al. (2008) Bone marrow
pathology in essential thrombocythemia: Inter-observer reliability and utility
for identifying disease subtypes. Blood 111: 60-70.
37. Scott
LM, Tong W, Levine RL, Scott MA, Beer PA, et al. (2007) JAK2 exon 12 mutations
in polycythemia vera and idiopathic erythrocytosis. N Engl J Med 356: 459-468.
38. Pardani
A, Lasho TL, Finke C, Hanson CA, Tefferi A, et al. (2007) Prevalence and
clinicopathologic correlates of JAK2 exon 12 mutations in JAK2V617F-negative
polycythemia vera. Leukemia 21: 1960-1963.
39. Lakey
MA, Pardani A, Hoyer JD, Nguyen PL, Lasho TL, et al. (2010) Bone marrow
morphologic features in polycythemia vera with JAK2 exon 12 mutations. Am J
Clin Pathol 133: 942-948.
40. Pich
A, Riera L, Beggiato E, Nicolino B, Godio L, et al. (2012) JAK2V617F mutation
and allele burden are associated with distinct clinical and morphological
subtypes in patients with essential thrombocythemia. J Clin Pathol 65: 953-955.
41. Vannucchi
AM, Antonioli E, Guglielmelli P, Pancrazzi A,Guerini V, et al. (2008)
Characteristics and clinical correlates of MPL515W>L/K mutation in essential
thrombocythemia. Blood 112: 844-847.
42. Beer
PA, Campbell PJ, Scott LM (2008) MPL mutations in myeloproliferative disorders:
Analysis of the PT-1 cohort. Blood 112: 141-149.
43. Jones
AV, Campbell PJ, Beer PA, Schnittger, Vannucchi AM (2010) The JAK2 46/1
haplotype predisposes to MPL-mutated myeloproliferative neoplasms. Blood 115:
4517-4523.
44. Klampf
T, Gisslinger H, Harutyunyan AS, Nivarthi H, Rumi E, et al. (2013) Somatic
mutations od calreticulin in myeloproliferative neoplasms. N Engl J Med 369:
2379-2390.
45. Nangalia
J, Massie CE, Baxter J, Nice FL, Gundem G, et al. (2013) Somatic CALR mutations
in myeloproliferative neoplasms with nonmutated JAK2. N Engl J Med 369:
2391-2405.
46. Rumi
E, Pietra D, Ferretti V, Klampfl T, Harutyunyan AS, et al. (2014) JAK2 or CALR
mutation status defines subtypes of essential thrombocythemia with
substantially different clinical course and outcome. Blood 123: 1544-1551.
47. Rumi
E, Pietra D, Pascutto C, Guglielmelli P, Martinez-Trillos A, et al. (2014)
Clinical effects of driver mutations of JAK2, CALR or MPL in primary
myelofibrosis. Blood 124: 1062-1069.
48. Tefferi
A, Lasho TL, Finke CM, Knudson RA, Ketterling R, et al. (2014) CALR vs. JAK2
vs. MPL-mutated or triple-negative myelofibrosis: Clinical, cytogenetic and
molecular comparisons. Leukemia 28: 1472-1477.
49. Silverstein
MN (1977) Myeloproliferative diseases. Hematology review. Postgrad Med 61:
206-201.
50. Lundberg
P, Karow A, Nienhold R, Looser R, Hao-Shen H, et al. (2014) Clonal evolution
and clinical correlates of somatic mutations in myeloproliferative neoplasms.
Blood 123: 2220-2228.
QUICK LINKS
- SUBMIT MANUSCRIPT
- RECOMMEND THE JOURNAL
-
SUBSCRIBE FOR ALERTS
RELATED JOURNALS
- Journal of Pathology and Toxicology Research
- Journal of Ageing and Restorative Medicine (ISSN:2637-7403)
- International Journal of Radiography Imaging & Radiation Therapy (ISSN:2642-0392)
- BioMed Research Journal (ISSN:2578-8892)
- Journal of Neurosurgery Imaging and Techniques (ISSN:2473-1943)
- Archive of Obstetrics Gynecology and Reproductive Medicine (ISSN:2640-2297)
- Journal of Cancer Science and Treatment (ISSN:2641-7472)
