We report
an uncommon case of multiple-site aorto-arteritis (Takayasu/NSAA) with active
tuberculosis in an adolescent Indian girl. Her initial presentation of brief
fever and breathlessness along with barely recordable peripheral pulses and BP
was baffling. The clinical course was complicated by symptomatic hypocalcaemia
and hypo-vitaminosis D. CECT scan of chest showed extensive necrotizing
mediastinal lymphadenitis, compressing large airways. Bronchoscopic lymph-node
biopsy confirmed tuberculosis. Both CT and MR angiography revealed multiple
sites of arterial narrowing. This case provides evidence to strengthen the
association of tuberculosis with Takayasu’s aorto-arteritis. Further review of
literature suggests a relationship of hypovitaminosis-D with both, an increased
proneness to tuberculosis and Takayasu arteritis.
Keywords: Non-specific
aorto-arteritis, Tubercular arteritis, Takayasu’s
aorto-arteritis,
Hypovitaminosis-D, MR angiography
Abbreviations: NSAA:
Non-Specific Aorto-Arteritis; TA: Takayasu’s Aorto-Arteritis; 3D-MIP and VR:
3-Dimensional Maximum Intensity Projection (MIP) and Volume Rendering (VR);
ATT: Anti-Tubercular Therapy; cQT: corrected QT Interval; CECT scan: Contrast
Enhanced CT scan
INITIAL CASE PRESENTATION
A 16 years old girl was brought to the ER on New-Year’s Eve, with
increasing breathlessness over few hours, following 2 days of low-grade fever.
She had attended school regularly until the same morning. There was no history
of cough, sputum, haemoptysis, rash, seizure, syncope, palpitations or chest
pain. No vomiting, aspiration, exposure to fumes; insect bites, unusual food
intake or medication was reported. There was no weight loss, diarrhea, dysuria
or recent stressors. Not sexually active, she’d recently had a normal period.
Clinical examination showed an averagely built adolescent, breathless
but comfortable lying down. Respiratory rate was 36/min, oxygen saturation was
92%. There was no cyanosis, stridor or audible wheeze. Bilaterally radial
pulses were imperceptible, femorals were feeble and carotids were well felt.
Cardiac monitor showed normal rhythm of 90 beats/min. Arm BP was unrecordable
bilaterally. She was warm but not febrile. Moderate pallor and sweating were
observed. No urticarial-rashes, angioedema, lymphadenopathy, edema or icterus
were noted. Trachea was central; chest expansion and resonant percussion-note
were equal on both sides. Cardiac and liver dullness were preserved. Breath
sounds were normal. Apex beat and heart sounds were normal. Abdominal and
neurological examinations were unremarkable. Capillary blood glucose was 76 mg/dl
and blood gases showed mild hypoxemia.
With a provisional diagnosis of warm-shock
(anaphylactoid/toxin-mediated/sepsis-related), emergency management was initiated.
Oxygen was given by face-mask; crystalloids were administered rapidly (500 ml/h
initially); and bladder was catheterized to monitor urine output.
Hydrocortisone 200 mg was given straightaway and 100 mg repeated 6 hourly.
Empiric treatment for community-acquired sepsis was instituted
(third-generation cephalosporins and vancomycin). Anti-histaminic were added.
Despite adequate hydration and urine output there was no improvement in BP for
2 h; therefore, ionotropic support was initiated. Breathlessness resolved and
oxygen saturation improved within 6 h.
INVESTIGATIONS AND CLINICAL
COURSE

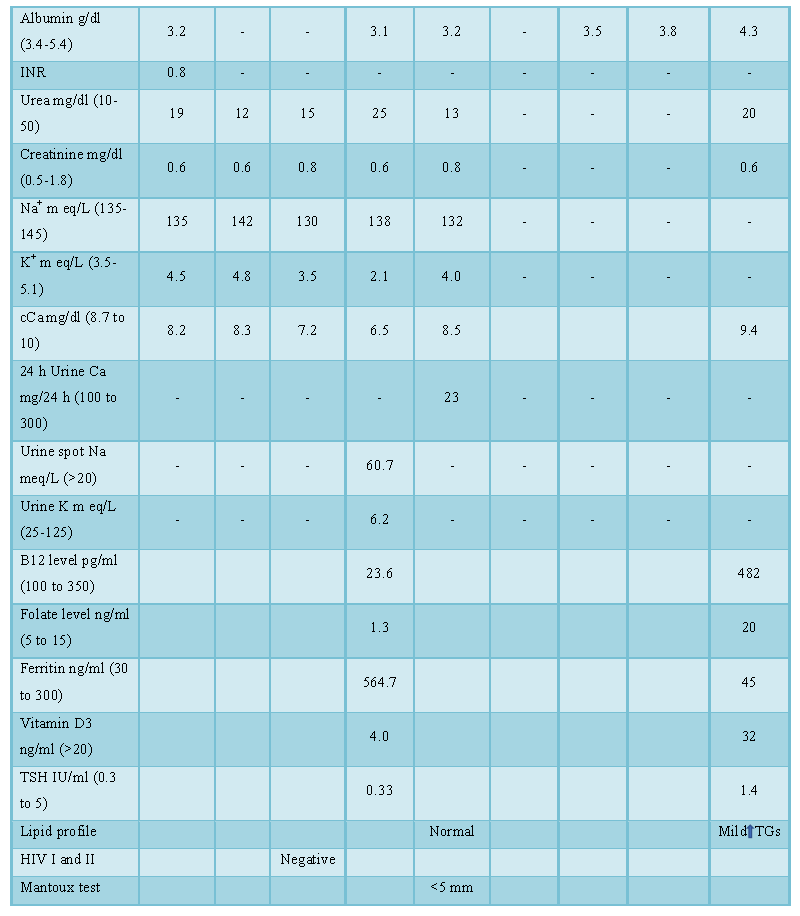

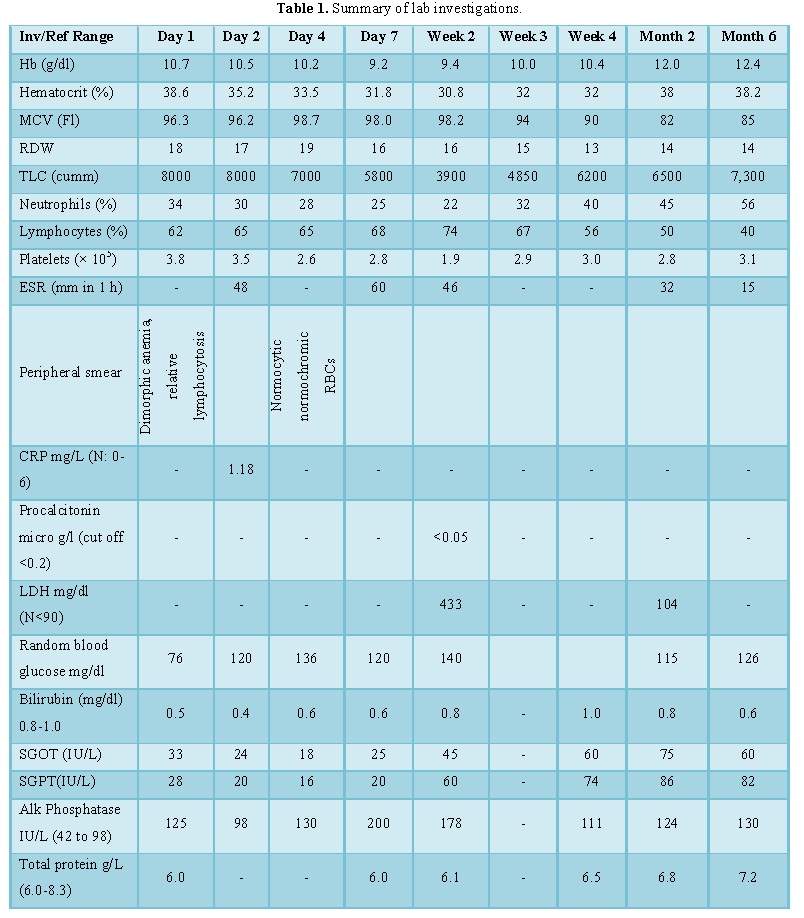

Initial investigations (Table 1) showed moderate
dimorphic-anemia, no leucocytosis, relative-lymphocytosis, normal platelets,
moderately elevated ESR; normal CRP, urinalysis, blood biochemistry, pH and
blood gases. X-ray chest showed mild hilar prominence. Resting ECG was normal.
X-ray chest showed mild hilar prominence.
Resting ECG was normal.
At 48 h, although improved breathing was
sustained, BP in all 4 limbs remained low- around 60/40 mm Hg with feeble
radial, femoral and popliteal pulses. Surprisingly, carotids and dorsalis-pedis
were well felt bilaterally. She was sitting-up and standing without hemodynamic
instability. Weight was 42 kg. Urine output and repeat blood-tests showed no
deterioration despite apparent hypotension. Inotropes were therefore tapered
off and urinary catheter removed.
Abdominal ultrasound
showed liver size 14.5 cm, spleen 11 cm, kidneys 10 cm length, normal texture
and no free fluid. Few retroperitoneal lymph-nodes were present. Doppler-study
on renal arteries showed normal flow. CECT scan of chest (Figure
1) showed a large, conglomerate, lobulated and necrotic, mediastinal
lymph-node mass, possibly of tubercular etiology; causing compression of the
large airways. Abdominal CT scan (Figure
2) showed few enlarged mesenteric lymph nodes, the largest measuring 12 × 6
mm.
On day 4, in the light of feeble peripheral
pulses and a previous history of claudication in both calf muscles 2 months
earlier; contrast-enhanced helical CT scan of aorta and
its branches was performed in angiographic mode (Figure 3). 3D-MIP and VR reconstructions were obtained. Bilateral
severe luminal narrowing of sub clavian and axillary arteries and circumscribed
infra-renal aortic narrowing for a 49 mm segment were seen. Fundoscopy was
normal. ATT and oral prednisolone were continued.
On day 7, she developed symptomatic
hypocalcaemia in the form of carpopedal spasms and positive Trousseau’s sign.
Severe hypovitaminosis D, hypocalcaemia and hypokalemia along with low urinary
potassium and calcium were detected (Table
1). ECG showed a prolonged cQT interval of 510
ms. Symptoms did not recur after replacement therapy and cQT interval
normalized in 2 days. Other micronutrient supplements were added in view of
deficient iron, folate and B12 (Table 1),
along with a high-protein diet. Mantoux and HIV testing were negative.
With a diagnosis of tubercular
mediastinal-lymphadenitis and non-specific aorto-arteritis (NSAA), she was
referred to a higher centre. There she underwent bronchoscopic lymph-node
biopsy and cardiovascular MR imaging and angiography.
The lymph-node biopsy showed epithelioid granulomata, caseation and occasional
acid-fast bacilli. GeneXpert-test
(molecular detection of mycobacteria and rifampicin resistance), was negative.
The MR imaging and angiography was suggestive of NSAA with active
tuberculosis (Table 2). Salient
features were enlarged, necrotic and conglomerate lymph-nodes in right
para-tracheal, sub-carinal, hilar and supra-clavicular locations with nodular
lesions in right lower-lobe. Angiographic narrowing of infra-renal aorta;
occlusion of superior mesenteric artery and both sub-clavians with distal
reformation; and diffuse disease of bilateral anterior tibial and left peroneal
arteries.
PRESENT CONDITION AND FUTURE PLAN
Decision for angioplasty was deferred since
her NSAA was active and widespread. Adequate collaterals had already formed and
no vital organ was at immediate risk. Under close follow-up, presently she has
completed 8 of the planned 9 months of ATT. She is still on 5 mg prednisolone,
which was gradually tapered after 4 months. No other immunosuppressant or
anti-platelet agent has been introduced due to steady improvement. Having
gained 8 kg weight, she has no limb-claudication, Raynaud’s phenomena, cough,
breathlessness, pain chest/abdomen or syncope. There is steroid-induced acne
but no significant hyperglycemia or dyslipidemia. All micronutrient
deficiencies are corrected. Peripheral pulses remain feeble, although volume
has improved. BP in both upper limbs is 70/40 mm Hg. In the lower limbs it is
96/50 mm Hg (right) and 84/44 mm Hg (left). Faint bruits are heard over the
left anterior tibial artery and abdominal aorta.
If these gains continue, MR angiography will
be repeated annually. She will remain under long-term follow-up. ECG,
echocardiography and fundoscopy will be used to assess masked hypertension.
DISCUSSION
Takayasu arteritis (TA) was named after the
Japanese ophthalmologist who first described its fundoscopic findings in 1905
[1]. Over 500 publications were reviewed for this case-report. Of these, a few
representative publications between 2000 to 2019 have been cited to keep the
discussion contemporary. The latest reference-books in cardiology [1,2] and
rheumatology [3] have not unequivocally attributed pathogenesis of TA to TB.
Genetic predisposition, inflammatory/autoimmune processes and other factors
including infections are implicated in its perpetuation. In fact, TA, tubercular, infective and syphilitic arteritides are
listed as distinct entities [1]. Despite this several similarities between
tubercular arteritis and TA exist. Both are large-vessel granulomatous arteritis, characterized by comparable
involvement of the aorta and its major branches; and are prone to
relapses/disease progression. Tuberculous arteritis, usually secondary to the
dissemination of Mycobacterium tuberculosis infection from the
mediastinum and/or lung to the adjacent aorta; mimics TA clinically [4-6],
as seems to be the case in our patient.
Classic TA frequently occurs in Asian
countries with high TB burden, strangely affecting young females 9 times more
often than males. Similar aortitis is also encountered in people of different
ethnicities [1-3]. Both may either be incidentally detected, or may present
with vaso-occlusive phenomena in vital circulations and rarely as aneurysm
formations [7-9]. Association of TA with latent, past or active tuberculosis is
widely published [10-17], mainly as case-reports. Jansson et al. [4] have
reviewed 18 cases of co-occurring TA and TB, where all patients were below 25
years, over half had lymph-node TB, all received ATT, 90% received steroids;
and 2 cases relapsed needing additional immunosuppressants. Lim et al. [5]
studied 267 patients of TA between 1994 to 2014, with and without TB. Cases
were diagnosed according to the 1990 American College of Rheumatology criteria
[18]. A total 94 (35.2%) patients had past or concomitant TB. Clinical features
and angiographic findings in TA were not different in the presence or absence
of concomitant TB. Previous similar studies also report no significant
difference between TA and TB arteritis, except the absence of proven
tuberculosis by available methods. Soto et al. [14] processed 181 aortic
tissues for gene-sequences indicating TB. The IS6110 sequence identified the M tuberculosis complex and the HupB established differences between M.
tuberculosis and M.
bovis. They identified a higher frequency of IS6110 and HupB genes in aortic tissues of TA patients suggesting that arterial damage
could occur due to previous infection with M.
tuberculosis. One report was
found that refuted the presence of M tuberculosis in arterial lesions from 10 patients with Takayasu’s arteritis [19]. Biopsies were assessed by
acid-fast and auramine-fluorochrome stains, mycobacterial cultures and
direct-amplification test.
Whether
TA or NSAA; ESR, CRP and procalcitonin have been used as markers of
inflammation during active disease and for detection of relapses with varying
reliability. Imaging by Doppler and ultrafast-ultrasound fails to pick up
active inflammation. Cardiovascular MR is superior to CT angiography in active
disease and during follow-ups for relapses. DSA and FDG-PET scans additionally
are able to detect vessel-wall oedema and are marginally superior in active
disease [7-9,20]. Additional tests to screen for tuberculosis include
X-rays, BCG, histopathology, microbiological processing and molecular-methods.
Improved
treatment modalities, are associated with better outcomes in the present
century compared to the previous [1-3,7-9]. The course of disease is variable.
Remissions and relapses are both reported, therefore there is a need for
long-term follow-up. Steroids (mainstay), other immune-suppressants and
biologic-response-modulators have all been included in recommended treatment
options with comparable results [1-3]. Most data comes from open-labelled
trials, observational-studies and individual series. Sample-sizes are generally
small and histopathological evidence is difficult to gather from living
patients.
The ‘surprise’ as
indicated in the title of this report, actually came from an unexpected
development. Our patient had hypo-calcemic tetany and cQT prolongation on day 7
of presentation. High-dose steroids probably precipitated the derangement in
the background of severe vitamin-D deficiency (Table 1). Growing evidence suggests
that vitamin D deficiency might be implicated in the development of active TB. Literature
review showed considerable data on the association of hypovitaminosis-D with
(a) proneness to tuberculosis from insufficient vitamin-D dependent defensins
[21-24] and (b) an indolent course of the disease [25-27]. Interleukin
(IL)-15 and IL-32 play roles in the vitamin-D mediated TB defense mechanisms. We also
found credible reports of an association of vitamin-D deficiency with
tubercular and Takayasu arteritis [28,29].
Had it not been for sudden breathlessness
from large airway obstruction and a dramatic ‘shock-like’ presentation; this
girl’s condition may have gone unnoticed for longer. Indolent course of disease
was evinced by a short and mild febrile illness; insignificant rise in phase
reactants (ESR, CRP and procalcitonin); and cutaneous anergy on
Mantoux-testing; all in the presence of extensive conglomerate necrotising
mediastinal and other lymphadenitis plus pulmonary TB. It may have been due to
concurrent severe deficiency of micronutrients, especially vitamin-D3. In
South-Asia, despite abundant sunlight, hypovitaminosis-D in females does occur.
Traditionally the women are fully-clothed when outdoors, at all times. Perhaps,
here lies a simple explanation for the gender-difference in incidence of TA and
NSAA.
CONCLUSION
Indolent tubercular granulomatous
inflammation of arterial walls, facilitated by lowered anti-tubercular defenses
from vitamin D deficiency may actually play a significant role in the genesis
of NSAA or TA. This case lends credence to the tubercular etiology of NSAA.
1.
Fuster V, Narula J, Harrington RA, Eapen ZJ (2017)
Hurst’s the heart. 14th Edn. Mc Graw Hill: USA, pp: 1847-1849.
2.
Zipes DP, Libby P, Bonow RO, Man DL, Tomaselli GF
(2019) Braunwald’s heart disease. 11th Edn. Elsevier: USA, pp:
1850-1852.
3.
Hochberg MC, Gravallese EM, Silman AJ, Smolen JS,
Weinblatt ME, et al. (2019) Rheumatology. 7th Edn. Elsevier: USA,
pp: 1378-1383.
4.
Jansson MK, Geerdes-Fenge HF, Kangowski A, Kneitz
C, Reisinger EC (2019) Tuberculosis and Takayasu arteritis: Case-based review.
Rheumatol Int 39: 345-51.
5.
Lim AY, Lee, GY, Jang SY, Gwag HB, Choi SH, et al.
(2016) Comparison of clinical characteristics in patients with Takayasu
arteritis with and without concomitant tuberculosis. Heart Vessels 31:
1277-1284.
6.
Moura C, Aquino MA, Filho JR, Santiago M (2015)
Case report - Takayasu's or tuberculous arteritis? BMJ Case Rep 2015.
7.
Kim ESH, Beckman J (2018) Takayasu arteritis:
Challenges in diagnosis and management. Heart J 104: 558-565.
8.
Keser G, Aksu K, Direskeneli H (2018) Takayasu
arteritis: An update. Turk J Med Sci 48: 681-697.
9.
Serra R, Butrico L, Fugetto F, Chibireva M D, Malva
A, et al. (2016) Updates in pathophysiology, diagnosis and management of
Takayasu arteritis. Ann Vasc Surg 16: 210-225.
10.
Kim KH, Shin JK, Kim S, Cho WH, Kim SS (2017)
Takayasu’s arteritis presenting with hypertension in pulmonary tuberculosis.
Korean J Med 92: 66-69.
11.
Khemiri M, Douira W, Barsaoui S (2016)
Co-occurrence of Takayasu’s arteritis and tuberculosis: Report of a Tunisian
paediatric case. Ann Pediatr Cardiol 9: 75-78.
12.
Baijal R, Chogle A, Kumar P, Shah N, Kulkarni S, et
al. (2015) A case of tuberculous colitis with associated Takayasu’s arteritis.
J Assoc Physicians India 63: 62-65.
13.
Walters HM, Aguiar CL, MacDermott EJ, Adams A,
Barinstein L, et al. (2013) Takayasu arteritis presenting in the context of
active tuberculosis. J Clin Rheumatol 19: 344-347.
14.
Soto ME, Del Carmen Ávila-Casado M, Huesca-Gómez C,
Alarcon GV, Castrejon V, et al. (2012) Detection of IS6110 and HupB
gene sequences of Mycobacterium tuberculosis and Mycobacterium bovis
in the aortic tissue of patients with Takayasu’s arteritis. BMC Infect Dis 12:
194.
15.
Al-Aghbari K, Al-Motarreb A, Askar F (2010)
Takayasu’s arteritis associated with tuberculosis in a young Yemeni woman.
Heart Views 11: 117-120.
16.
Almohammadi AA, Consunji-Araneta R (2007) Two cases
of Takayasu’s arteritis and tuberculosis. Chest 132: 675A.
17.
Modi G, Modi M (2000) Cold agglutinins and
cryoglobulins in a patient with acute aorto-arteritis (Takayasu’s disease) and
tuberculous lymphadenitis. Rheumatology 39: 337-338.
18.
Arend WP, Michel BA, Bloch DA, Hunder GG, Calabrese
LH, et al. (1990) The American College of Rheumatology 1990 criteria for the
classification of Takayasu arteritis. Arthritis Rheum 33: 1129-1134.
19.
Arnaud L, Cambau E, Brocheriou I, Koskas F, Kieffer
E, et al. (2009) Absence of Mycobacterium tuberculosis in arterial
lesions from patients with Takayasu’s arteritis. J Rheumatol 36: 1682-1685.
20.
Isobe M. (2013) Takayasu arteritis revisited:
Current diagnosis and treatment. Int J Cardiol 168: 3-10.
21.
Hong Y, Kim Y, Lee JJ, Lee MG, Lee CY, et al.
(2019) Levels of vitamin D-associated cytokines distinguishes between active
and latent tuberculosis following a tuberculosis outbreak. BMC Infect Dis 19:
151-159.
22.
Buonsenso D, Sali M, Pata D, Masiello E, Salerno G,
et al. (2018) Vitamin D levels in active TB, latent TB, non-TB pneumonia and
healthy children: A prospective observational study. Fetal Pediatr Pathol 37:
337-347.
23.
Gou X, Pan L, Tang F, Gao H, Xiao D (2018) The
association between vitamin D status and tuberculosis in children: A
meta-analysis. Medicine (Baltimore) 97: e12179.
24.
Azam F,
Shaheen A, Arshad R (2016) Frequency of hypovitaminosis D and its
associated risk factors in newly diagnosed pulmonary tuberculosis patients. Pak
J Med Sci 32: 480-484.
25.
Keflie TS, Nölle N, Lambert C, Nohr D, Biesalski HK
(2015) Vitamin D deficiencies among tuberculosis patients in Africa: A
systematic review. Nutrition 31: 1204-1212.
26.
Venturini E,
Facchini L, Martinez-Alier N, Novelli V, Galli L, et al. (2014) Vitamin D and
tuberculosis: A multi-centre study in children. BMC Infect Dis 14.
27.
Khandelwal D, Gupta N, Mukherjee A, Lodha R, Singh
V, et al. ( 2014) Vitamin D levels in Indian children with intra-thoracic
tuberculosis. Indian J Med Res 140: 531-537.
28.
Alibaz-Oner F, Asmaz-Haliloglu Ö, Gogas-Yavuz D,
Can M, Haklar G, et al. (2016) Vitamin D levels in Takayasu’s arteritis and a
review of the literature on vasculitides. J Clin Lab Anal 30: 529-533.
29.
Liao H, Pan LL, Du J, Wang T (2018) Relationships
between the levels of serum 25-hydroxyvitamin D and interleukin-6 in patients
with Takayasu's arteritis. CMAJ 98: 3509-3512.
QUICK LINKS
- SUBMIT MANUSCRIPT
- RECOMMEND THE JOURNAL
-
SUBSCRIBE FOR ALERTS
RELATED JOURNALS
- Journal of Cancer Science and Treatment (ISSN:2641-7472)
- Journal of Nursing and Occupational Health (ISSN: 2640-0845)
- Advance Research on Alzheimers and Parkinsons Disease
- International Journal of Diabetes (ISSN: 2644-3031)
- Journal of Pathology and Toxicology Research
- Archive of Obstetrics Gynecology and Reproductive Medicine (ISSN:2640-2297)
- Journal of Allergy Research (ISSN:2642-326X)
