Polylactic acid (PLA) stands out as the most extensively researched and utilized biodegradable aliphatic polyester in material studies. Its widespread adoption in various applications, both in medicine and industry, makes PLA a leading biomaterial, replacing conventional petrochemical-based polymers. The mechanical and physical properties influencing stability, processability, degradation, immiscibility with other polymers, aging, and recyclability are crucial factors determining PLA's suitability for specific applications [7]. Acrylonitrile

butadiene styrene (ABS) is an impact-resistant engineering thermoplastic and amorphous polymer composed of three monomers: acrylonitrile, butadiene, and styrene. Possessing desirable physical properties, including high rigidity, good impact resistance even at low temperatures, excellent insulating properties, good weldability, and abrasion and strain resistance, ABS is a versatile material with diverse applications [8]. Requirements for ABS can be classified into four main categories: chemical, mechanical, electrical, and thermal characteristics. Material extrusion, with its advantages of simplicity, lower manufacturing costs, fast processing, and the ability to process a wide range of thermoplastics with complex structures, is a widely used method. High impact polystyrene (HIPS), a low-cost polymer with high dimensional stability and ease of fabrication, painting, and connection, finds commercial use in the pre-production of prototypes [9]. Polyethylene terephthalate glycol (PETG), a miscible and transparent thermoplastic, exhibits strong tensile properties, high ductility, and resistance to heat and chemical insults. PETG is a popular choice for 3D printing due to its versatile manufacturing modalities. Nylon (PA), a synthetic material widely used in various industrial fields, is valued for its versatility as an engineering plastic that can be easily transformed into fibers, films, and molded parts. With biocompatible characteristics, PA is widely used in medical applications such as sutures, catheters, and dentures [10]. Known for superior mechanical properties, including tensile strength, flexibility, and impact resistance, as well as chemical and corrosion resistance, PA stands out as a polymer of significance [11]. Carbon Fiber with PLA composite emerges as a cost-effective alternative to more expensive materials like Titanium. This composite exhibit higher thermal resistance and better impact energy absorption compared to traditional photopolymers used in 3D printing. The process parameters for Fused Deposition Modeling (FDM) of CF-reinforced plastic composites mirror those used in FDM of pure plastic 3D printing materials [12,13]. Polymethylmethacrylate (PMMA), an FDA-approved synthetic biomaterial, finds widespread use in fabricating reconstructive structures, including dental implants and implants for craniofacial defects. Additionally, PMMA serves as bone cement to remodel lost bone and affix implants [14-16]. The development of new metal/polymer composite filaments for FDM processes aims to observe the thermo-mechanical properties of these filaments. Variations in printing parameters, such as temperature and fill density, were explored to understand their effects on the tensile strength of the final product manufactured through the FDM process [17].

Dimensional accuracy is usually addressed in manufacturing processes to test if the parts will comply with dimensional requirements [18]. For additively manufactured parts, for example, in selective laser sintering (SLS), Islam [19] found that the dimensions in the xy plane were undersized, while the dimensions in the z direction were oversized. In FFF processes with polylactic acid (PLA), [20] reported that bed temperature and nozzle temperature had the greatest effect on dimensional accuracy of the parts, while layer thickness and infill density were the most influential parameters on porosity. In a similar work with ABS, the same authors observed that dimensional accuracy mainly depended on bed temperature and print speed, and porosity was influenced by infill density and raster angle [21].

With different materials available in the inventory, it is difficult to make decisions concerning the selection of a material to suit a particular application. This study aims to experiment and lay down the characteristics of commonly available materials in the FDM technology and understand their mechanical properties to decide for usage in various applications.

METHODS AND MATERIALS

An experimental study was conducted at the Surgical Innovation Laboratory, JPNATC, AIIMS, New Delhi with Reconstructive Healthcare Solutions as the technical support partner to test 9 different materials on two standardized designs for their mechanical properties. In this study, two different standard specimens were made in CAD (Computer Aided Design) using SolidWorks software and exported to stl file to be printed in different materials for measuring the tensile and compressive strength. The 3D model in Fusion 360 was designed by ASTM D638. 3D printing was done in 9 different materials using slicer software Simplify 3D in the FDM printer WASP 2040. Temperature of these different filaments vary for all brands. In Table 1 temperature range has been mentioned for accurate printing [11,13,16,17,23,24]. Different materials were printed with the temperature as shown in Table 1. Nozzle diameter was 0.4 mm and the layer height of 0.2 mm was set up, which is the mostly common setting for economical additive manufacturing with 100% infill. Printing properties of the different materials are shown in the Table 1.

The temperature fluctuation during the printing process is illustrated, highlighting that the highest and lowest temperatures necessary for printing are associated with PA and PLA filaments, respectively. It is noteworthy that higher temperature values result in increased electric power consumption. Table 1, provides details on bed temperature, indicating that the maximum temperature is 115 degrees Celsius, attributed to HIPS filament, while the minimum bed temperature of 50 degrees Celsius corresponds to PLA filament.

Density of the filament varies from material to material, PA has maximum density, and ABS and HIPS filament has minimum density, out of Nine mentioned filaments. Density of PA is 1520 kg/m3 while ABS and HIPS has density of 1030 kg/m3.

Figure 1 shows the side wall of specimens at different printing temperatures, optimum printing temperature of PLA filament that yielded the best tensile behavior while maintaining its dimensional accuracy was when T=220°C, and bed temperature of 50°C [25]. Tensile Strength and peak load carrying capacity of ABS was maximum at nozzle temperature of 260 C and bed temperature of 100 C [26,27]. Based on the study found in parameter used for FDM printing of pure HIPS is given as, 250C of nozzle temperature and 100C of bed temperature [28].

Similarly, bed temperature and Nozzle temperature of remaining filaments, PETG [23], PA [11], Carbon Fibre [13], Ceramic [24], PMMA [16], Metal composite [17], as shown in Table 1 respectively.

The nine specimens underwent testing using the UTM (Universal Testing Machine) Figure 2, Instron 25kN UTM [29], encompassing both tensile and compressive assessments. The dimensions of the specimens for these tests adhered to the standards outlined in ASTM D638 [30] (Type 1 flat sheet dog bone) and ASTM D695 [31]. Ultimate tensile strength, is the maximum stress that a material can withstand while being stretched or pulled before breaking. The ultimate tensile strength is usually found by performing a tensile test and recording the engineering stress versus strain. The highest point of the stress-strain curve is the ultimate tensile strength and has units of stress. The equivalent point for the case of compression, instead of tension, is called the compressive strength.

In Figures 3a & Figure 3b, the printed part, CAD design, and specimen dimensions for tensile and compressive testing are illustrated, respectively. The UTM machine, capable of measuring materials in tension, compression, and young’s modulus, was employed with a focus on tensile and compressive testing. A constant Z-axis movement was maintained at a speed of 5 mm/min for both tensile and compressive tests [32,33].

Comparison of printed part with CAD Design: Original CAD design has the dimension of 20mm diameter and 40mm thickness. The infill pattern adopted was rectilinear, featuring angles of -45° and 45° for alternating layers. This configuration involved the use of parallel filaments with a raster angle of 45° for one layer, followed by parallel filaments with a raster angle of -45° for the subsequent layer, resulting in a 90° angle between them. The infill ratio was set at 100%, accompanied by a wall count of 5 layers. The nozzle diameter utilized was 0.4 mm. Each specimen was printed individually, positioned at the center of the building platform. The printing duration for the bone-shaped specimen was approximately 55 min, while that for the cylinder-shaped specimen was around 1 h.

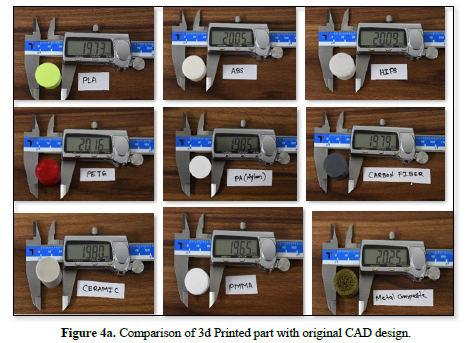

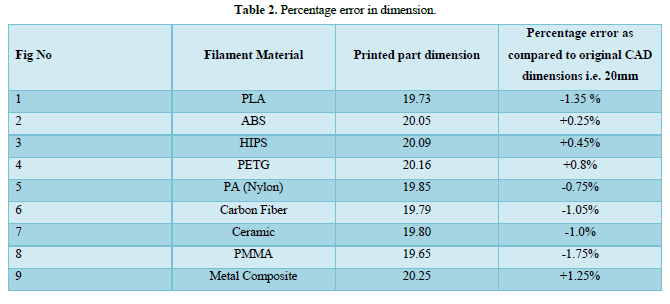

Figure 4a comprises nine images illustrating discrepancies in dimensions compared to the CAD-designed part, with each printed component exhibiting distinct measurements. Table 2 provides a breakdown of the percentage error observed in the printed parts. Negative values indicate dimensions smaller than those of the actual CAD model, while positive values signify dimensions exceeding the original CAD dimensions. Graphically representing the percentage error, Figure 4b visually depicts the variations. The error percentage was meticulously assessed using a Vernier caliper, with the least count of 0.01mm. It is found that maximum and minimum error was of -1.75 % (PMMA) and -0.25%(ABS).

RESULTS AND DISCUSSION

Tensile Strength

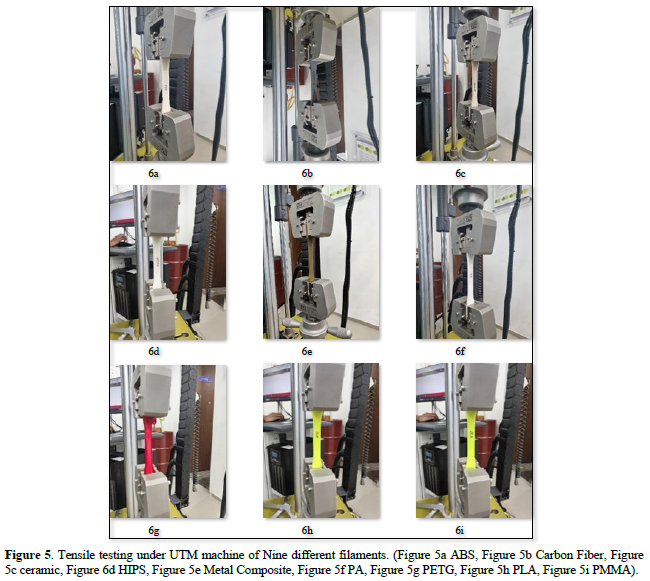

One specimen was made for each type of test, a total of 9 parts were printed for measuring tensile strength. For statistical evaluation, software office 365 excel was used. Figure 5 shows the images of nine specimen (Figure 5a ABS, Figure 5b Carbon Fiber, Figure 5c ceramic, Figure 5d HIPS, Figure 5e Metal Composite, Figure 5f PA, Figure 5g PETG, Figure 5h PLA, Figure 5i PMMA), respectively, which are clamped with holder on both ends of specimen. The specimen was then locked using allen bolt on a specimen holder. Initially at rest position the setup was taken to zero to avoid any error while calculating the values. The data was saved to the excel file. The breaking point of all the samples was different depending on the properties the filament. In each case the nine samples of filament material were subjected to the tensile tests. The tensile test results achieved for different filament material are shown in Table 3.

Young's modulus tells us how well a material can handle stretching or squeezing. It's like a measure of the material's flexibility. Tensile strength, also known as ultimate tensile strength, measures how much force a sample can take before breaking. We calculate it by dividing the maximum force the sample can withstand by its cross-sectional area. In our case, we've kept the specimen's area the same for all samples. The value of the ultimate tensile strength is between 9.18 and 0.93 MPa. Carbon Fiber shows ultimate tensile strength value of 38.43 MPa and PA shows the least ultimate tensile strength value of 9.18 MPa. Similarly, Carbon Fiber shows the maximum young’s modulus of 0.91 GPa while PA has 0.062 GPa with least young’s modulus.

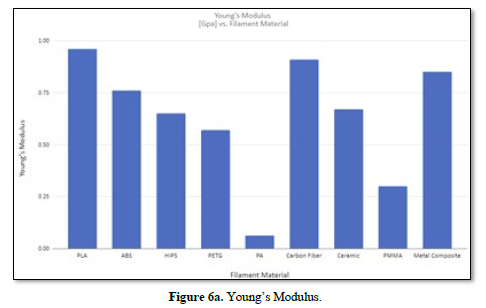

Figures 6a & 6b shows the graphically representation of the young’s modulus and ultimate tensile strength.

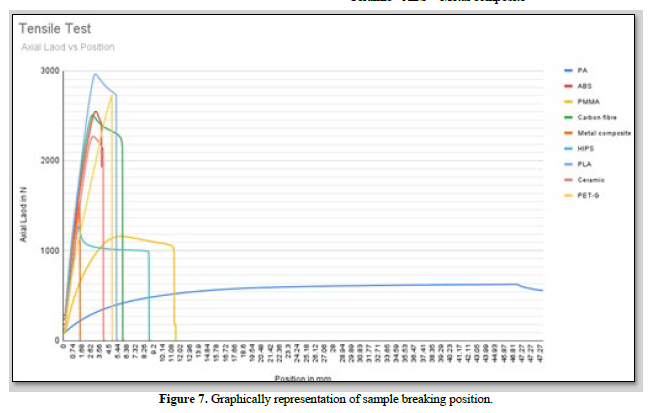

In this experimental study, graph was drawn from the excel data of nine different filaments, namely ABS, PLA, PETG, PMMA, PA, HIPS, ceramic, carbon fiber, and metal composite. The experimental results were graphically represented, with the x-axis denoting distance by which specimen is expanded which is also position change from rest position in mm and the y-axis representing the applied axial load in newtons (Figure 7). Notably, the analysis revealed varying breaking times among the tested filaments, demonstrating their diverse mechanical behaviors under tensile stress. Polyamide (PA) exhibited a noteworthy characteristic, as it required an extended duration before experiencing failure, more than 50mm of elongation, signifying its superior resistance to tensile forces. Conversely, the metal composite filament displayed the shortest breaking time at an elongation of 1.6mm from zero position, suggesting its comparatively reduced tensile strength (Figure 7). These findings contribute valuable insights into the mechanical properties of different filaments, offering valuable information for applications in various fields such as manufacturing, engineering, and material science. As travel speed was constant throughout the testing process, the distance travel is directly proportional to the time taken to break the specimen. The breaking time of the filaments is shown below:

PA > PMMA > HIPS > Carbon Fibre > PLA > PET-G > Ceramic >ABS > Metal composite

Compressive testing

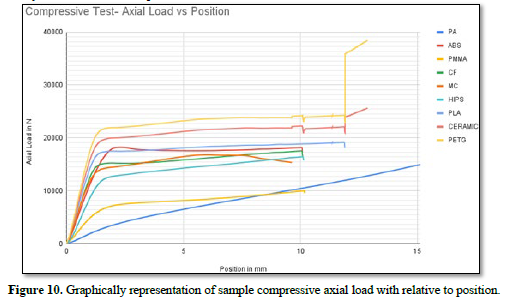

In this comprehensive analysis, graphs were generated using Excel data for nine distinct filaments: ABS, PLA, PETG, PMMA, PA, HIPS, Ceramic, Carbon Fiber, and Metal Composite. The experimental findings were visually depicted, with the x-axis indicating time in seconds and the y-axis representing the applied tensile load in newtons.

For each testing, a single specimen was utilized, resulting in a total of nine parts printed for compressive testing. Statistical evaluation was conducted using Microsoft Office 365 Excel.

Figure 8 illustrates images of the nine specimens (Figure 8a ABS, Figure 8b Carbon Fiber, Figure 8c Ceramic, Figure 8d HIPS, Figure 8e Metal Composite, Figure 8f PA, Figure 8g PETG, Figure 8h PLA, Figure 8i PMMA), positioned between flat surfaces on both ends of the specimen. The specimens were freely positioned due to their flat surfaces, with an upper and lower compression platen fixture utilized. The setup was initially zeroed to eliminate any errors during calculations, and the data was saved in an Excel file.

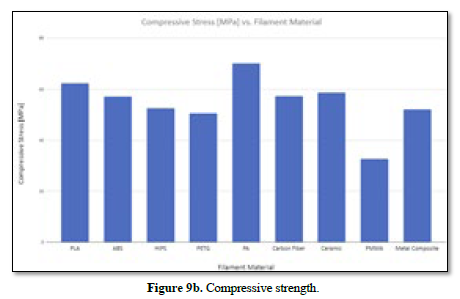

The breaking point of each sample varied depending on the filament's properties. Nine samples of filament materials were individually subjected to compressive tests, with the results tabulated in Table 4. The compressive stress values [MPa] ranged from 52.12 to 70.13, while Young’s Modulus values [GPa] for all nine specimens ranged from 0.24 GPa to 1.93 GPa. PA exhibited the highest compressive stress value of 70.13 MPa, while PMMA displayed the lowest stress value of 32.7 MPa. Similarly, PLA demonstrated the highest Young’s Modulus value of 1.93 GPa, while PA had the lowest at 0.23 GPa.

Notably, the analysis revealed varying breaking times among the tested filaments, demonstrating their diverse mechanical behaviors under compressive stress. Polyamide (PA) exhibited a noteworthy characteristic, as it required an extended duration before experiencing failure, signifying its superior resistance to compressive forces. Conversely, the Metal Composite filament displayed the shortest breaking time, suggesting its comparatively reduced compressive strength (Figure 10). These findings contribute valuable insights into the mechanical properties of different filaments, offering valuable information for applications in various fields such as manufacturing, engineering, and material science.

CONCLUSION

The investigation into the mechanical properties of various filaments using Fused Deposition Modelling (FDM) printers has provided valuable insights for diverse applications in diverse fields such as manufacturing, engineering, and material science. The filaments including ABS, PLA, PETG, PMMA, PA, HIPS, Ceramic, Carbon Fiber, and Metal Composite, exhibited distinct characteristics in response to tensile and compressive stresses. Table 1 demonstrated different printing temperature for different filaments. Figure 2 concluded the role of optimum bed temperature to obtain an accurate and well finished base layer of a printed part.

The FDM printers employed polymer filaments composed of thermoplastic polymers, allowing for melting and softening during heating and subsequent recovery of their original properties upon cooling. Notably, the tensile testing results revealed PLA to possess superior resistance to tensile forces, exhibiting an extended breaking time compared to other filaments (Table 3).

The study further detailed the print parameters for each filament, including temperature, nozzle diameter, printing speed, infill density, platform temperature, layer thickness, filament diameter, and density. The investigation considered variations in temperature, with PA requiring the highest print temperature and PLA the lowest (Table 1). Additionally, the density of filaments varied, with PA having the highest density and ABS and HIPS having the lowest.

The research included tensile and compressive testing of standard specimens designed through CAD, and the 3D printing process was executed using an FDM printer. The comparison of 3D printed parts with the original CAD design revealed minimal percentage errors, with the maximum and minimum errors observed in PMMA (-1.75%) and ABS (+0.25%), respectively.

Tensile testing results were obtained using a Universal Testing Machine (UTM), showcasing variations in young’s modulus and ultimate stress among the different filaments. PLA exhibited the highest resistance to tensile stress exhibiting an extended breaking time compared to other filaments (Table 3), while the PA showed the lowest resistance. Compressive testing results similarly demonstrated the diverse mechanical behaviors of the filaments, with PLA displaying superior resistance to compressive forces and the PMMA exhibiting reduced compressive strength (Table 4).

Young's Modulus aids in understanding the elasticity of materials and how materials with varying elastic properties can be applied in specific applications. In this study, the young's modulus for tensile strength of PLA is found to be maximum, while that of PA is minimum. This suggests that PLA exhibits greater stretch ability and elasticity compared to other materials. Conversely, since PA has the lowest Young's modulus, it can be utilized to fabricate strong components. Similarly, in terms of compressive strength, PLA demonstrates the maximum elasticity while PA exhibits the minimum. Consequently, PLA can undergo greater deformation under compression compared to PA and other materials. If required printing part needs to be flexible, then PA can be considered due to its greater young’s modulus value.

In conclusion, this study contributes valuable data on the mechanical properties of diverse filaments, providing a foundation for informed material selection in additive manufacturing processes. The findings have implications for applications where specific mechanical properties are crucial, guiding practitioners in optimizing filament choices for various engineering and manufacturing needs. We can determine the most suitable material for a specific application based on research, considering the type of part to be printed and its intended use.
