One-and-a-half
syndrome is a syndrome of horizontal movement disorder of both eyes. It
presents as a combination of conjugate horizontal gaze palsy in one eye (one)
and internuclear ophthalmoplegia (INO) of the contralateral eye (half). Our
case is interesting as this syndrome is one of the most localizing brainstem
syndromes. Being a rare entity with low prevalence worldwide, this case is the
first to be witnessed at our institute with one and a half syndrome being the
presenting symptom of a right pontine infarct with hemorrhagic transformation.
Keywords: Internuclear ophthalmoplegia, One-and-a-half
syndrome, Hemorrhage
INTRODUCTION
One and a half syndrome encompasses gaze palsy in one direction with an
INO on horizontal gaze in the opposite direction, hence on attempted horizontal
gaze, only abduction of the contralateral eye is present. On neutral gaze, the
contralateral eye is slightly abducted (so-called paralytic pontine exotropia).
Convergence is spared. This syndrome is caused by affection of paramedian
pontine reticular formation (PPRF) and/or abducens nucleus and medial
longitudinal fasciculus (MLF) on the same side [1]. Usually it is of vascular
origin and it can be a sign of lateral pontine hemorrhage [2]. INO is a gaze
abnormality characterized by impaired horizontal eye movements with weak
adduction of the affected eye, and abduction nystagmus of the contralateral eye
resulting from a lesion in the MLF in the dorsomedial brainstem tegmentum of
either the pons or the midbrain [1]. The most common cause of one and a half
syndrome in older patients is ischemic infarction, risk factors for the latter
is advanced age, hypertension, diabetes and smoking.
CASE REPORT
A 57 year old female with a past medical history of long standing
hypertension- not compliant with medications- and anemia, presented to the
emergency department for one day history of diplopia associated with headache,
nausea and vomiting. The patient's initial blood pressure was 240/140 mm Hg.
The patient woke up with left sided eye deviation and diplopia. She denied
aphasia, dysarthria and mentioned the Emergency Medicine Service (EMS) noted
left sided facial droop. In physical exam, in neutral gaze, the right eye globe
was central in position, the left eye was abducted. On horizontal gaze
examination, the left eye adducts to the midline only and not further and
abducts with no nystagmus, while the right eye can neither adduct nor abduct.

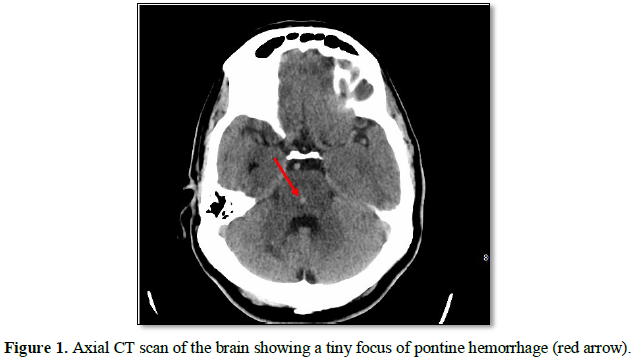

Brain CT showed small right pontine hemorrhage (Figure 1). The patient was started on nicardipine drip and
admitted to the Medicine Intensive Care Unit for further management with the
diagnosis of one and half syndrome status post hypertensive right pontine
hemorrhage.
Repeated brain CT scan in 24 h later showed stable changes. Neurology
was consulted and recommended MRI of the brain which showed acute to early
sub-acute right paramedian pontine lacunar infarct with small amount of acute
hemorrhage at the anterior margin (Figure
2). The patient remained neurologically stable and was transferred to the
floors where she reported feeling well. She reported persisting double vision
in her left eye, an eye patch was prescribed. The patient was discharged home
with a follow up visit scheduled at Neurology clinic where she showed
improvement, she had only mild dysconjugacy on nearly normal horizontal
Extraocular muscle (EOM).
DISCUSSION
The paramedian pontine reticular formation (PPRF) is the conjugate gaze
center for horizontal eye movements. During horizontal eye movement, the PPRF
cells innervate the abducens nucleus, which contains two distinctive sets of
neurons: a) Axons of the abducens motor neurons directly innervate the
ipsilateral lateral rectus muscle. b) Axons of the abducens interneurons cross
the midline to become the Medial Longitudinal Fasciculus (MLF) and subsequently
innervate the medial rectus sub nucleus of the oculomotor complex. Motor neurons
from this sub nucleus innervate the medial rectus muscle (ipsilateral to the
medial rectus sub nucleus and contralateral to the abducens nucleus) [3,4].
The MLF exists as a pair of white matter fiber tracts that lie near the
midline just under the fourth ventricle and cerebral aqueduct and extend
through the dorsomedial pontine and midbrain tegmentum (Figure 3). The MLF is involved in coordinating synchronous
horizontal eye movements. Because of their close physical proximity near the
midline, bilateral injury is common [2,3]. Through the MLF, the actions of the
oculomotor and the abducens nuclei are coordinated, generating conjugate
horizontal eye movements. The disorders of the horizontal eye movement that are
caused by brainstem lesions are classified into three groups: a) lateral gaze
palsy; b) INO; and c) one and a half syndrome. The pathologic lesions depicted
on magnetic resonance images were topographically well correlated with the
brainstem pathways and each type of horizontal eye movement disorder. Most of
the lesions were tiny acute infarctions and were found in the most posterior
region of the pons, which corresponded to the location of the brainstem
pathways [5].
An INO results from injury to the MLF. The side of the INO is named by
the side of the adduction deficit, which is ipsilateral to the MLF lesion. In
our case, being the left eye with incomplete adduction deficit due to damage of
the left MLF. Damage to the right PPRF will cause bilateral conjugate eye
paralysis to the left. Our case is interesting since the patient has an
additional affection of the right abducens nerve resulting in right eye
abduction paralysis. Along with clinical
examination, patients who present with an INO require brain magnetic resonance
imaging (MRI). The deficits associated with INO often resolve over a few to
several months. Patients may be treated with patching of one eye for
symptomatic relief of diplopia.
CONCLUSION
One and a half syndrome consists of gaze palsy in one direction with an
INO on horizontal gaze in the opposite direction. With attempted horizontal
gaze, only abduction of the contralateral eye remains. Convergence is spared.
In primary (neutral gaze), the contralateral eye is slightly abducted
(so-called paralytic pontine exotropia). This syndrome is produced by damage to
the paramedian pontine reticular formation (PPRF) and/or abducens nucleus and
MLF on the same side, all of which are affected in our case owing to pontine
infarction with reperfusion hemorrhage. Awareness of the brainstem pathways
controlling horizontal eye movement is important to avoid missing a small
pontine lesion [5].
1.
Xue F, Zhang L, Zhang L,
Ying Z, Sha O, et al. (2017) One-and-a-half syndrome with its spectrum
disorders. Quant Imaging Med Surg 7: 691-697.
2.
Zidverc JJ, Jovanović DR,
Kovacević MS, Beslać-Bumbaserević LJ (1989) One and a half syndrome caused by
lateral pontine hemorrhage. Srp Arh Celok Lek 17: 661-668.
3.
Wray, Shirley H (2014)
Horizontal gaze and syndromes of the pons: Eye movement disorders in clinical
practice. Oxford University Press, p: 207.
4.
Teresa EF (2019)
Internuclear opthalmoparesis. Accessed on: 21 October, 2019. Available online
at https://www.uptodate.com/contents/internuclear-ophthalmoparesis?search=one%20and%20a%20half%20syndrome&source=search_result&selectedTitle=1~150&usage_type=default&display_rank=1
5.
Bae YJ, Kim JH, Choi BS,
Jung C, Kim E (2013) Brainstem pathways for horizontal eye movement: Pathologic
correlation with MR imaging. Radiographics 33: 47-59.
