The
rising awareness for opioid free analgesia and enhanced recovery after surgery
has led to an increasing popularity of regional anesthesia. Perioperative pain
management in lumbar surgeries is a challenge for the anesthesiologists as
these patients are already suffering from chronic pain and the methods
available have remained limited.
Thoracolumbar
Interfascial Plane Block (TLIP) is a relatively new technique that targets the
dorsal rami of the thoracolumbar nerves as they pass through the paraspinal
musculature. We describe here a series of ten patients who underwent endoscopic
lumbar discectomies solely under TLIP block.
All the
patients maintained a visual analogue score (VAS) of 0-2 during the surgery and
24 h post-operatively. None of the patients required opioids in the
post-operative period.
Keywords: Thoracolumbar interfacial plane block, Disc
herniation, post-operative analgesia, Endoscopic discectomy, Manuscript
INTRODUCTION
Lumbar disc herniation is the major cause of
back pain and sciatica. In recent years a number of endoscopic procedures for
lumbar disc herniation have been developed in terms of minimally invasive spine
surgery (MISS) with clinical outcomes comparable to those of conventional open
surgery [1]. Some of the advantages of endoscopic lumbar spine surgery are
reduced blood loss, less muscle trauma; early functional recovery and reduced
hospital stay [2]. We present here ten cases of awake transforaminal endoscopic
discectomies which were done under thoracolumbar interfascial plane block
(TLIP).
METHODOLOGY
Ten patients who were scheduled to undergo
endoscopic discectomy were chosen randomly to receive TLIP block to evaluate
its efficacy for perioperative analgesia without general anesthesia. All the
patients had single nerve root lesions including sequestrated or migrated disc
at L4-5 or L5-S1. Pre-operatively, all the patients underwent magnetic

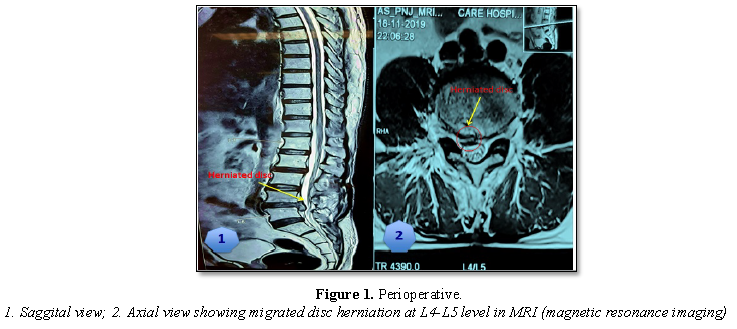

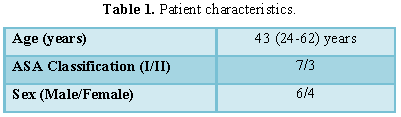

resonance imaging to access the adequacy of decompression (Figure 1). The patient characteristics are given in Table 1. A detailed pre-anesthesia
check-up was done and the patients were posted for the procedure after an
informed written consent.
In the operating room, after
applying the standard American Society of Anesthesiology (ASA) monitors and
establishing an intravenous line, the patients were placed in the prone
position. Unilateral TLIP block was performed on the side of the endoscopic

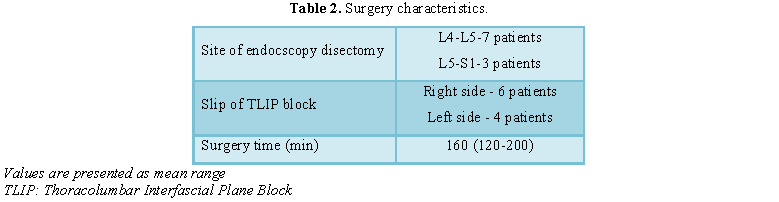

discectomy (Table 2). A curvilinear
low frequency transducer using SonoSite Edge II ultrasound machine was used to
identify and mark L3 lumbar vertebrae by counting up from L5-S1 in a

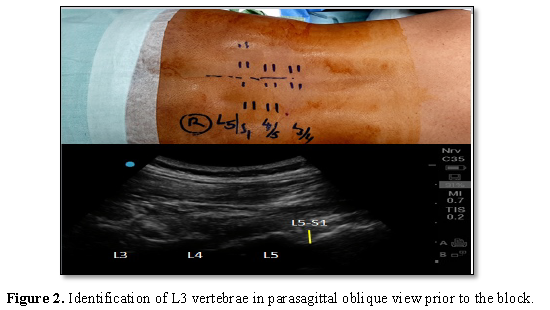

para-sagittal oblique view (Figure 2).
After cleaning, draping and rendering the transducer sterile, it was placed
transversely at the level of L3 vertebrae to identify the spinous process. The
transducer was then moved laterally to identify the multifidus (MF) and
longissimus (LG) muscle interface. A 100 mm insulated echogenic needle was
inserted in plane from lateral to medial direction through the bulk of LG

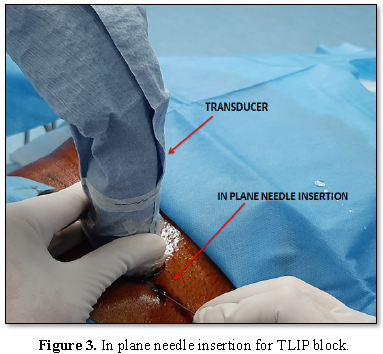

muscle (Figure 3). Once the needle
tip was identified deep to the midpoint of LG-MG interface, 15 ml of 0.375% of

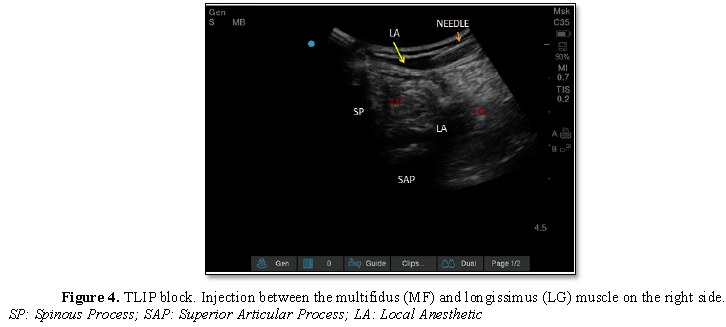

bupivacaine was injected after negative aspiration (Figure 4). The needle was then redirected and 5 ml of local

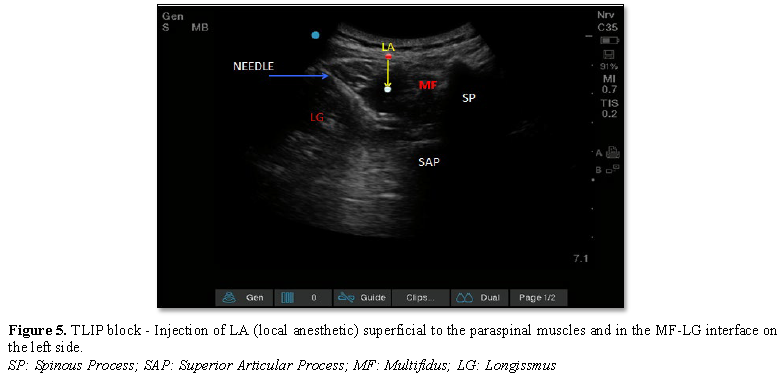

aesthetic (LA) was injected superficial to paraspinal muscles (Figure-5). All the patients received
Inj midazolam 2 mg for light sedation. After 20 min, the patients were checked
for adequacy of the block by loss of point discrimination to pinprick in the
L2-S1 dermatomes on the side of the block. The average duration of surgery was
120 min (120-200 min) and all the patients remained hemodynamically stable
throughout the procedure. Two patients complained of mild pain at the
introduction of the scope for which they were given Injection Paracetamol 1 g
and Injection fentanyl 25 µg as single doses. All the patients received
Intravenous Paracetamol 1 g Q8 hourly in the post-operative period and had a
VAS of 0-2 during the next 24 h. The patients were mobilized 4 h after the
surgery and discharged on the next day.
DISCUSSION
Thoracolumbar
Interfascial Plane Block is an effective, safe and simple block for peri- and
post-operative anesthesia and analgesia for lumbar laminectomies. The patients
presenting for these surgeries have an additional burden of chronic pain along
with long term consumption of analgesics or narcotics that alter pain
perception thereby complicating pain management [3]. There are three muscle
groups in the paraspinal area which have been described. These include
multifidus, longissmus and iliocostalis from medial to lateral orientation.
Lumbar spinal nerve emerges from the intervertebral foramina and divides into
dorsal and ventral rami. The dorsal rami ascend at the junction between the
spinouts process and superior articular process and splits into three branches
which emerge in the plane between the muscle groups [4].
TLIP block is a
relatively new block which was first described in 2015 by Hand et al. [5]. The
aim is to deposit the local anesthetic into the plane between the multifidus
and longissimus muscle to block the dorsal rami of the thoracodorsal nerve as
they pass through the paraspinal musculature. The second injection superficial
to the paraspinal muscles results in further subcutaneous blockade. The extent
of analgesia in our patients was between L2-S1 dermatomes as demonstrated by
loss to pinprick sensation. In a study done by Ammar et al. [6], 3 ml of
contrast medium was injected in one patient with the L.A to determine the
extent and level of spread of the drug. In another study, the authors
established loss of cold sensation in the T7-L1 dermatomes 20 min after
injecting 20 ml of 0.25% bupivacaine for bilateral modified TLIP blocks [7].
All the previous studies have been done to demonstrate analgesia in patients
undergoing lumbar laminectomies under general anesthesia [6]. This case series
is one of the first to demonstrate the efficacy of TLIP block in awake patients
undergoing endoscopic lumbar discectomy. In our study, we injected 20 ml of L.A
on the side of the surgery which gave excellent analgesia for 24 h. This is
comparable to the retrospective study done by Ueshima et al [8]. Who
demonstrated effective analgesia for 24 h after lumbar laminoplasty following
bilateral TLIP blocks? None of our patients required opioids in the
post-operative period. The VAS was significantly lower in these patients (0-2)
even with active movement. Our results are comparable to the study done by
Ahiskalioglu et al. [7] which concluded that patients receiving TLIP block
consumed less fentanyl while reporting superior pain scores. Furthermore unlike
other studies, we have used a low frequency curvilinear transducer for better
penetration and wider field of view instead of high frequency linear transducer
for performing the block.
LIMITATIONS
Although our
patients were fairly comfortable throughout the procedure, there were many
factors influencing the positive outcome. All the patients were fairly young
individuals who did not have any major co-morbidity and tolerated the prone
position fairly well. There were no patients with redo surgeries; hence we
could not evaluate the role of TLIP block in patients undergoing revision
lumbar laminectomies. The loss of sensation and adequacy of the block was
tested by pin prick method; we did not do any contrast studies to evaluate the
extent of the local anesthetic agent.
CONCLUSION
Therefore we
conclude that TLIP block is a superficial, easy block which is a viable option
for awake endoscopic discectomies without any adverse effects. We believe that
TLIP block will be the analgesic option of choice for post-operative analgesia
after multi-level lumbar laminectomies as well there by reducing the need for
opioids in these patients. Modified approach to TLIP block has been described,
but large randomized trials are required to prove its efficacy [9].
1.
Choi G, Pophale CS, Patel B, Uniyal
P (2017) Endoscopic spine surgery. J Korean Neurosurg Soc 60: 485-497.
2.
Choi KC, Kim JS, Park CK (2016)
Percutaneous endoscopic lumbar discectomy as an alternative to open lumbar
microdiscectomy for large lumbar disc herniation. Pain Phys 19: E291-300.
3.
Bhaskar SB, Bajwa SS (2013)
Pharmacogenomics and anesthesia: Mysteries, correlations and facts. Indian J
Anesth 57: 336-337.
4.
Winiski LE (2019) Snell’s
Clinical Anatomy by Regions. 10th Edn. Philadelphia: Wolters Kluwer, p: 117.
5.
Hand WR, Taylor JM, Harvey NR,
Epperson TI, Gunselman RJ, et al. (2015) Thoracolumbar interfascial plane
(TLIP) block: A pilot study in volunteers. Can J Anesth 62: 1196-1200.
6.
Ammar MA, Tasimah M (2018)
Evaluation of thoracolumbar interfascial plane block for post-operative analgesia
after herniated lumbar disc surgery: A randomized clinical trial. Saudi J
Anesth 12: 559-564.
7.
Ahiskalioglu A, Yayik AM,
Doymus O, Selvitopi K, Ahiskalioglu EO, et al. (2018) Efficacy of ultrasound
guided modified thoracolumbar interfascial plane block for post-operative
analgesia after spine surgery. A randomized controlled trial. Can J Anesth 65:
603-604.
8.
Ueshima H, Ozawa T, Toyone T,
Otake H (2017) Efficacy of the thoracolumbar interfascial plane block for
lumbar laminectomy. A retrospective study. Asian Spine J 11: 722-725.
9.
Ekinsi M, Ciftci B, Atalay YO
(2019) Ultrasound-guided modified thoracolumbar interfascial plane block is
effective for pain management following multi-level lumbar spinal fusion surgery.
Ain-Shams J Anesthesiol 11: 24.
