The article presents a brief analysis of
the state of diagnosis of skin melanomas in the region. It is shown that the
incidence of this pathology has increased more than 1.5 times over the past
decade. The percentage of nodular skin melanomas is 47%, requiring expensive
treatment than the early surface-spreading forms. In order to detect skin melanomas
earlier and activate pigment nevi, we have developed a non-invasive method of
ZOOM diagnostics using a portable USB microscope with digital transmission to a
robotic complex with a touch screen and pre-staining the pigment nevus using
the Van-Gieson type-picrofuxin (positive decision to grant a patent for
invention no. 2019136711/14 (072500 of 14.11.2019). In this case, connective
tissue fibers are colored yellow and collagen (reticular) in bright red,
creating a diamond-shaped network. When activating or transforming pigment
nevi, structural changes occur that can be recorded on the screen and a library
with standards can be created. For the purpose of interpretation, two lines
from one corner to the other, provided for in the computer insert, were “water”
on the segments. The method is simple, tested in 40 patients and can be used at
the primary care stage or sent for remote counseling.
Keywords: Pigment nevi, USB microscope, Picrofuxin, Digital transmission to the
screen of a robotic complex
There is not a single person who does not
have 10 pigment nevi. The frequency of skin melanomas (MC) has increased almost
2 – fold over the past decade, mainly among middle-aged and elderly people due
to sunburn and an increase in the high frequency of advanced cases and 1-year
mortality, respectively, by 10% and 19% [1].
According to many authors [2,3] the phase of
horizontal growth (usually up to 6 mm) replaces the phase of radial growth and
is a manifestation of progression. MC is more likely to develop in women aged
30-60 years. Its manifestations are diverse. MC in the 2nd phase can rapidly
develop and metastasize. To prevent this, it is important to diagnose the
neoplasm in the horizontal growth phase.
MC can develop both on the background of an
existing nevus and on unchanged skin. There are the following signs of
malignant transformation of skin pigment formations (ABCDE method):
A-asymmetric form of formation; B (borders) - irregular, indistinct outlines of
the edge; C (color)- heterogeneous color D (diameter) - diameter of the
formation E (evolution) - evolution/development (changes occurring in the
pigment formation). However, clinical signs are not always early, so any pigment
formation should be mandatory examined by a specialist. In addition to the
visual examination, a dermatoscopy is performed, which increases the
effectiveness of the diagnosis of primary melanoma. A number of authors allow
biopsies to be performed by scraping or taking a piece of tissue for
morphological examination for the diagnosis of primary MC [2]. However, this is
an invasive method and should only be performed by a specialist before surgery.
At the primary level, you must adhere to the principle of “Non tange me” (don't
touch me).
In Russia, over the past 10 years, the
incidence of MC has increased from 5.46 to 7.76 (almost 1.5 times).
and reproduction in any medium, provided the original author and source are credited.
PURPOSE OF RESEARCH
Assess the
state of skin melanoma diagnosis in the region and develop a non-invasive
method for detecting signs of activation of pigment nevi and surface-spreading
melanomas.
MATERIALS & METHODS
From 2014 to
2018, 276 patients with skin melanomas aged 22 to 75 years (101 men and 182
women) were registered in the Novgorod region. The number of cases of MC in the
last 5 years with certain fluctuations shows a tendency to stabilize with an
excess of the incidence among women by 8.2%. However, if compared over a longer

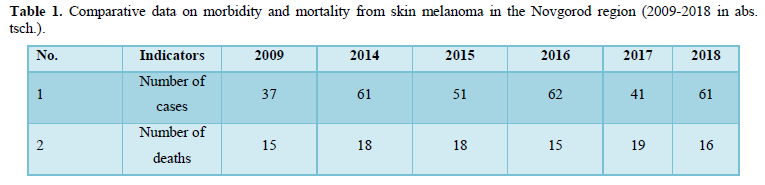

period (since 2009 Table 1) the
number of cases increased by more than 1.6 times, which is associated with a
change in lifestyle, fashion trend to tan led to a significant increase in the
total time and area of exposure to UVF on human skin, which is not
evolutionarily adapted to this.
According to the results of statistics in the
region, most of them are registered nodal MC (47%), characterized by primary
vertical growth, this is due to untimely diagnosis and late treatment of
patients and waiting for the “open day”, held once a year. However, despite the
current situation, the number of deaths in recent years has increased slightly,
due to more expensive treatment (increased volume of plastic surgery, the use
of adjuvant immunotherapy and targeted drugs).
The most common method for diagnosing MC is
dermatoscopy, which usually allows for a 10-fold increase in the surface structures
of the tumor. The doctor applies special immersion oil to the mole and applies
a Dermatoscope to it. The light source is fed from the side at an angle
resulting in some surface structures being reflected, which are then analyzed.
The main disadvantages of this option of
dermatoscopy are: the inability to examine deeper layers with a Dermatoscope;
the lack of own lighting; inspection by a single specialist; the inability to
document photos and conduct telemedicine consultation in the “op-line” mode with
leading specialists [4].
Тo study the structures of connective tissue,
we used a brush to paint Van-Gieson when a nevus transformation was suspected
for 5-10 min. The dye was a mixture of acid fuchsin and picric acid
(picrofuxin). For surface forms of pigment neoplasms, the dye penetrates the
skin epithelium, while fuchsin stains the collagen fibers in a bright red

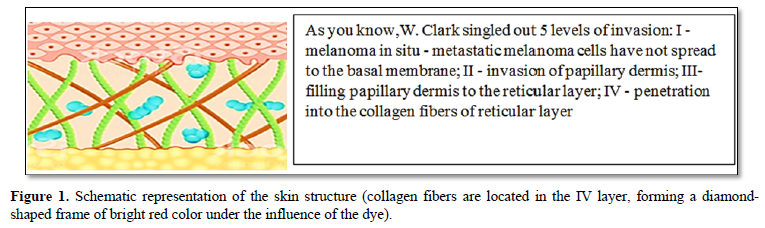

color, located in the dermis in the normal form of rhombs (Figure 1), picrin adds yellow and other colors to other tissue
structures that become randomly or asymmetrically arranged in melanoma -
Jocelyn H. Bruce-Gregorios, M. D.: carried out a histopathologic techniques,
JMC Press Inc., Quezon City, Philippines, 1974.; Wikipedia.
Using a robotic complex and interviewing the
patient with illustrations in the section “Pigmented nevi” according to
standards, the presence of a nevus with signs of activation or high risk
(borderline, Dubreuil's melanosis, etc.) is established. A trained nurse paints
the studied nevus with picrofucxin for 5-7 min with a brush. The patient, under
the control of the nurse, takes a sleeve with a portable USB microscope with an
adjusted focus and puts the tube on the pathological process, which is
displayed on the monitor screen with full-screen magnification. In connection
with staining with a special dye, we get information from deeper layers (where
the collagen fibers are located). For the purpose of topographic assessment,
two “water” lines are applied to segments from one corner to the other, provided

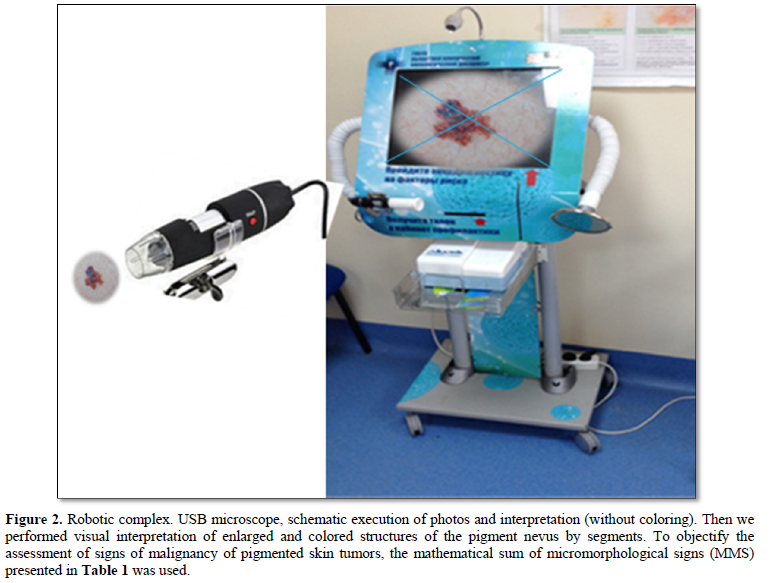

in the computer insert. The lines were superimposed on a fixed digital photo (Figure 2; positive decision to grant a
patent for invention no. 2019136711/14 (072500 of 14.11.2019).
We sum up the points and get mathematical
micromorphological features (MMS):
1. Benign neoplasm-from 0 to 5 points
2. Borderline neoplasm-from 5 points
3. Malignant neoplasm-from 6 points
This method was tested in 40 patients at the
regional clinical Oncology center.

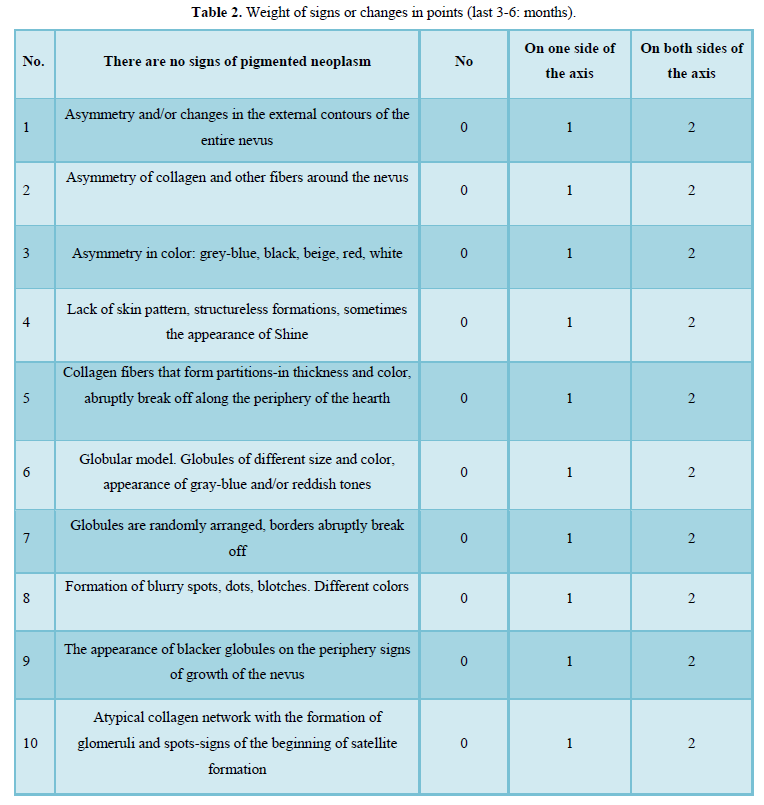

As a result of the clinical examination, it was concluded that 9 patients have intradermal nevus, 2 have senile keratosis, and 8 have mixed nevus. In 2 cases, Dubreuilmelanosis was established. 13 people have border nevi. In addition, 6 patients were suspected of activating the process (Table 2).

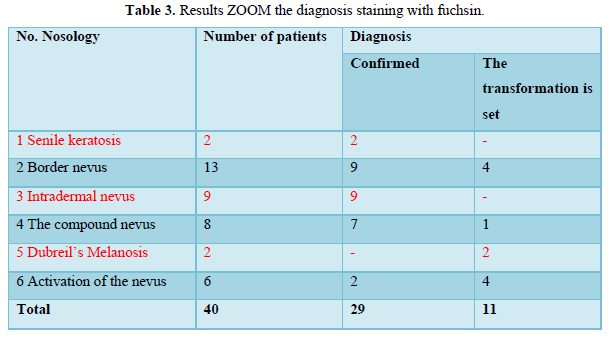

As can be seen from Table 3, according to our data, including on the “Open doors” day,
the use of ZOOM diagnostics with staining in 11 patients (28.2%) revealed signs
of transformation into a malignant neoplasm, of which in 1 case, a histological
study after surgery turned out to be melanocytic dysplasia.
As an illustration, we give several examples (Figures 3,4 and 5).
CONCLUSION
1. Preliminary data on microscopy of
surface-spreading pigment formations with a special dye are a real breakthrough
in the diagnosis of melanomas. The use of this technique can be used for remote
counseling.
2. Evenly rhomboid arrangement of collagen
fibers in the nevus and their departure from the edge characterizes a benign
pigment nevus, chaotic location, their breakage, the formation of glomeruli at
the edge with dot inclusions, indicates, respectively, malignization and the
beginning of the appearance of satellites.
3. An important aspect of improving the
effectiveness of diagnosis of early forms of melanoma is training the
population in self-examination methods and contacting a specialized institution
directly.
1.
Kaprin AD,
Starinsky VV, Petrova-M GV: mnioi IM, Herzen PA (2017) Malignant neoplasms in
Russia in 2017 (morbidity and mortality) The Federal State Budgetary Institution
“NMITS radiology” of the Ministry of Health of Russia.
2.
Aliyeva MD, Yu BB,
Demidova LV (2014) Clinical recommendations for the diagnosis and treatment of
patients with melanoma of the skin. p: 11.
3.
Shatilova AA,
Akimova AD, Zhiznevsky R (2014) Algorithm of Pathomorphological Diagnosis of
Melanomas and NEVI / / Scientific community of students of the XXI century.
Natural Science: Collection of articles on the Mat. XLVII International Student.
Science.- yeah. Conf. No. 11 (46).
4.
Gandini S, Sera F,
Cattaruzza MS (2005) A meta-analysis of risk factors for cutaneous melanoma: I.
Common and atypical nevi. Eur J Cancer 41: 28-44.
5.
Cherenkov VG,
Pasevich KG (2019) Positive decision to grant a patent for invention no.
2019136711/14 (072500 of 14.11.2019).
