The history, current application, and future
direction of acoustic measurement of the ear, including acoustic impedance
measurement and otoacoustic emission, are overviewed. Acoustic measurement of
the ear began in the late 1930s by Metz
with the clinical application of acoustic impedance measurement. Impedance
changes with acoustic reflex and air pressure condition, later termed
“tympanogram,” were then investigated. In the late 1950s, equipments based on
electroacoustic principles with an airtight probe became commercially
available. Jeger introduced and spread these
methods to the United State in the
1970s, establishing acoustic
measurement as a clinical test. From 1978 to 1979, Kemp presented
acoustic signals, which are
emitted from the cochlea according to its
active amplification mechanism,
with various techniques termed
“otoacoustic emissions (OAEs).”
Currently, these measurements are essential for evaluating the peripheral auditory
system in otolaryngology clinics. Tympanometry and OAEs are used for assessing
middle and inner ear functions, respectively. The acoustic reflex and medial olivocochlear (MOC) reflex are
used for assessing brainstem function; however, these methods still have
limitations in clinical application because
of the potential risk of causing
hearing loss during
acoustic reflex measurement and reliability of the results in MOC reflex
assessment. With the current progress
in signal processing, acoustic measurement of the ear will advance to higher
resolution both in terms of frequency and time course. These advances are
expected to reveal more detailed dynamic characteristics of hearing functions,
including the acoustic reflex and MOC reflex.
Keywords:
Acoustic measurement; Tympanometry; Acoustic reflex; Otoacoustic emissions
INTRODUCTION

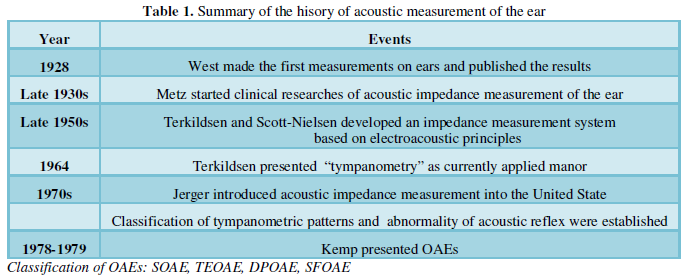

History of Impedance Measurement (Table 1)
Current Application of Acoustic Measurement for Peripheral Auditory Systems

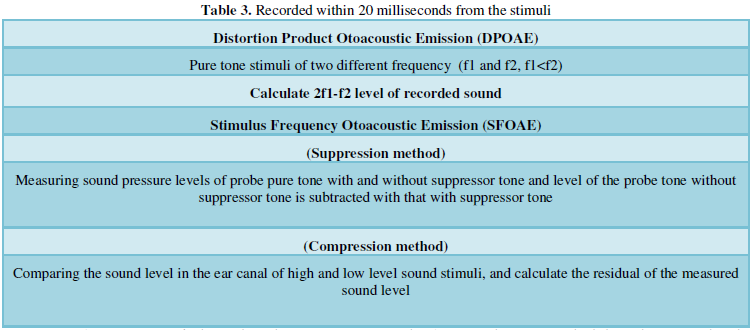

As described above, tympanometry, acoustic reflex and OAE measurement (mainly DPOAE measurement) are essential tests in otolaryngology clinics. For patients with hearing loss, tympanometry and OAEs combined with otoscopy and pure tone audiometry can distinguish the damaged part of the auditory pathway. Conductive hearing loss without an external ear canal and eardrum can be distinguished using tympanometry because of the ossicular chain or air pressure in the middle ear cavity. OAEs can also be used to distinguish sensorineural hearing loss into cochlear and retrocochlear hearing loss. OAEs and the acoustic reflex are also used for objective hearing assessment when the candidate cannot or will not cooperate with usual types of audiometry. The acoustic reflex is also used for distinguishing the damaged region in facial palsy.
Although these acoustic measurement tests are simple and convenient, they still have limitations for clinical application. One limitation is that the peripheral part of the target area should be acoustically normal. Therefore, assessment using acoustic measurements is challenging when a subject has a middle ear disease, thus highlighting the importance of checking for other centrally located lesions. The second limitation is how to interpret the results for clinical diagnosis. Acoustic measurements are highly affected by individual body structure. Thus, normative ranges have not been established for most acoustic measurement tests, and examiners or physicians must carefully apply their own judgments.
Current Application of Acoustic Measurement for Retrocochlear Function

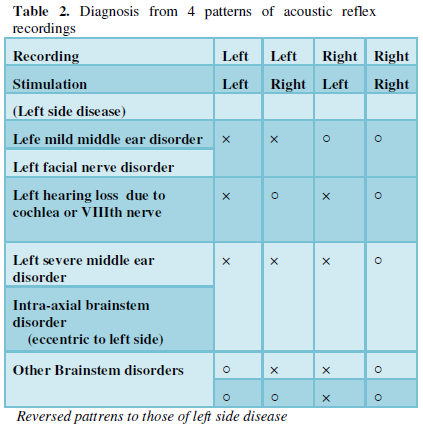

After Anderson et al. [13] first reported that the acoustic reflex measurement was used for the differential diagnosis of retrocochlear lesions; the acoustic reflex threshold was also used to differentiate cochlear, VIIIth nerve, and brainstem disorders. The comparison of uncrossed and crossed reflex thresholds is helpful for differentiating VIIIth nerve and brainstem disorders. Reflex decay has also been reported to be a sensitive measure of the VIIIth nerve disorder [36,37] and brainstem lesions [38,39]. Reflex amplitudes have been reported to be depressed in patients with VIIIth nerve tumors [36,40] and brainstem disorders [12,41]. Acoustic reflex onset latency and rise time have also been used as diagnostic tools for the differentiation of cochlear and retrocochlear disorders, but the existence of an onset latency delay in patients with VIIIth nerve disorder is controversial [42-44].
Acoustic reflex is useful for the diagnosis of retrocochlear lesions; however, it is not widely used at present because of the introduction of ABR and magnetic resonance imaging in the 1980s. Compared with these techniques, the acoustic reflex measurement is cost-effective and convenient, but it has lower accuracy as a diagnostic tool. The threshold level of acoustic reflex depends on the accuracy of the measuring instruments, and the acoustic reflex amplitude itself demonstrates intersubject variability. Reflex decay measurements can reduce variation caused by instruments and subjects; however, the need to consider temporary or permanent auditory changes remains [45,46].

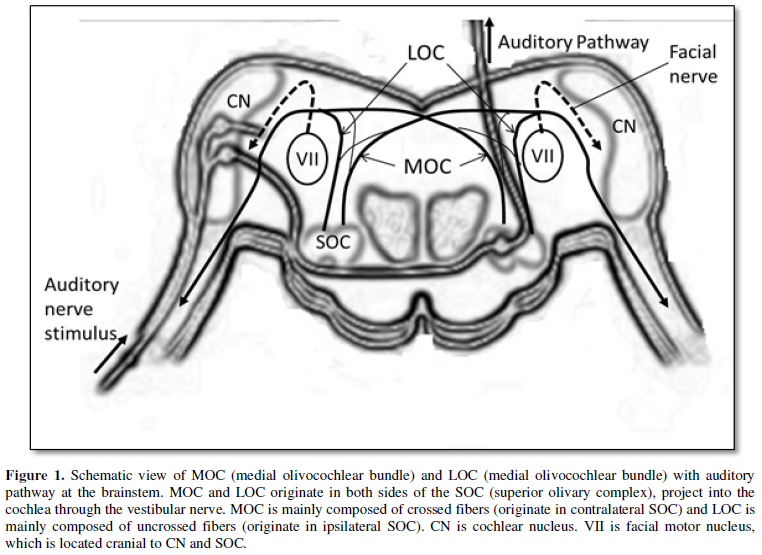

The discovery of OAEs results in the presence of another technique for assessing retrocochlear function with the MOC reflex. Olivocochlear bundles originate in both sides of the superior olivary complex (SOC), project into the cochlea through the vestibular nerve, and terminate in the organ of Corti, which was first described by Rasmussen [47]. The nerve fibers are classified into crossed and uncrossed types based on the side of the SOC and into medial and lateral types based on the location of the cell bodies in the SOC [48,49] (Figure 1). MOC efferents originate in the medial superior olivary nuclei and terminate on the outer hair cells, whereas lateral olivocochlear efferents originate in the lateral superior olivary nuclei and terminate on the dendrites of type I auditory nerve afferent fibers. Electrophysiological recordings of single fibers of olivocochlear bundles in cat demonstrated responses to sound stimulation in both sides of the ear. Galambos [50] first attempted electrical stimulation of MOC fibers at the floor of the fourth ventricle in animal models and observed reduction of the compound action potential. With this approach, the amplitude of mechanical vibration of basilar membranes of low-to-moderate intensity and frequencies nearby the characteristic frequency to sounds reduced [51,52], indicating that MOC has an inhibitory effect on outer hair cells.
Given the recent progress of digital signal processing, acoustic measurement has also progressed. One important advance is that wide-band measurement is now commercially available [59,60]. This measurement method, which is termed wide-band reflectance or absorbance measurement, uses a chirp sound (short tone bursts with rapid frequency changes) of a broad frequency band and measures the sound level in the ear canal. This method is expected to facilitate more detailed or reliable measurements of the middle ear. Moreover, the applications of tympanometry have also started [61].
Acoustic measurement of the ear will advance to higher resolution in terms of both frequency and time course with progress in signal processing. Such development is expected to reveal more detailed dynamic characteristics of hearing functions, such as the acoustic reflex and MOC reflex. This will result in additional information pertaining to sound processing in the brainstem, which is a limitation of neuroimaging and evoked potentials, and can help reveal the pathophysiology of unresolved hearing difficulties.
CONCLUSION
