The plant-mediated synthesis of noble metal nanoparticles is widely used for the preparation of allopathic nano drugs with enhanced bio-efficacy. However, little attention has been paid towards the use of such green nanotechnological approach for the bio-fabrication of noble metal nanoparticles using homeopathic mother tincture (highly dilute plant extracts) for the enhancement of pharmacological activities. The enhancement in pharmacological bio-efficacy chiefly depends on the shape and size of the nanoparticles. Among the various methods used for size segregation of nanoparticles, post-synthesis segregation of nanoparticles using sucrose density gradient centrifugation is considered a fast, simple and green method for improving solution-phase heterogenous metal nanoparticles to homogenous nature with desirable size.

The present communication warrants the synthesis of gold nanoparticles using Calendula officinalis homeopathic mother tincture in a single-pot green process, accompanied by thorough characterization for their optical property, surface morphology, crystalline lattice, particle size and zeta potential. Post synthesis size segregation has been carried out using sucrose density gradient centrifugation. The fractionated nanoparticles sized in the narrow range (Z-average 28.13 to 13.24 nm) have been monitored to study the effect of nano-sizing on the enhancement in the free radical scavenging activity (DPPH assay). The nanosized fractionated gold nanoparticles (Z-average 13.24 nm) exhibited elevated free radical scavenging activity (28.17%) compared to native Calendula officinalis homeopathic mother tincture (Z-average 8217 nm). A tentative mechanism has been put forward explaining the observed enhancement.

Keywords: Density gradient centrifugation, Calendula officinalis, Homeopathic mother tincture, Gold nanoparticles, DPPH assay

Abbreviations: Cm@AuNp: Gold Nanoparticles Embedded with Calendula officinalis Homeopathic Mother Tincture; UV-Vis Spectroscopy: Ultra-Violet-Visible Spectroscopy; SEM: Scanning Electron Microscope; XRD: X-Ray Diffraction; DLS: Dynamic Light Scattering; RPM: Revolutions per Minute; DPPH: 2,2-Diphenyl-1-Picrylhydrazyl Radicals; JCPDS: Joint Committee on Powder Diffraction  Standards

The growing popularity of complementary medicine has been accompanied by a call for controlled clinical studies to examine the efficacy and cogency of its mode of action [1]. Homeopathy is one of the important complementary medicine and a time-tested two-century-old empirical system of healing. Homeopathic medicines are prepared through a characteristic process known as potentization, where serial dilutions are performed with strong strokes at each step of dilution [2]. Homeopathy is controversial because its most medicines do not contain one single molecule of the corresponding starting substance and earlier has been labeled as the placebo effect. However, homeopathy elicits much more than placebo responses.

It is an empirical puzzle and a challenge to its orthodox scientific models. In recent perspectives, with the advent of new tools supplied by nanoscience and nanotechnology, novel research pathways of homeopathic medicines are to be opened [3].

Size and shape are important parameters for nanoparticle-based drugs [4] that control the kinetics of internalization [5], biodistribution [6], cellular membrane deformability [7] and cargo loading efficiency [8]. It has been shown that smaller nanoparticles escape natural body clearance mechanisms more efficiently and hence circulate longer in the blood [9]. In addition, the shape plays an important role in demonstrating that cylindrical nanoparticles interact with cells very differently to spherical ones, resulting in dramatic changes in the bio-availability [10]. The preparation of nanoparticles with the well-defined size is essential for accurate control of chemical and physical properties [11]. Size-controlled nanoparticles find its application in medical science, biotechnology self-assembly, electronics, diagnostics, and sensing [12,13]. The various influencing factors and different synthetic methods make it challenging to synthesize nanoparticles with uniform size and morphology. Therefore, post-synthesis separation methods remain a more feasible way to procure monodisperse nanoparticles [14]. Several techniques have been employed to separate nanoparticles of desired size and shape. Techniques such as magnetic field flow fractionation filtration [15], size exclusion chromatography [16], size selective precipitation [17], density gradient centrifugation [18] and cross-flow filtration [19] have been utilized to produce certain nanoparticle fractions with narrow shape and size distributions. Recently, centrifugation has been proven to be a more effective and easy method to segregate nanoparticles based on their size due to its high efficiency, capability of scalable production, and free of nanoparticle aggregation [20,21]. Density gradient centrifugation is cost- effective, fast, easy and highly versatile method used for separation of nanoparticles according to their size [22].

In continuation of our work pertaining to the green synthesis, characterization and enhancement of various pharmacological bio-efficacy [23-27], the present piece of work demonstrates the single pot green synthesis of gold nanoparticles (Cm@AuNp) using homeopathic mother tincture Calendula officinalis, thorough characterization and post-synthesis size segregation of bio-fabricated gold nanoparticles using sucrose density gradient centrifugation. Further, the effect of size of segregated gold nanoparticles on the antioxidant bio-efficacy has been studied.

MATERIALS AND METHODS

Calendula officinalis homeopathic mother tincture was purchased from the homeopathic store of SBL India. The synthesis of gold nanoparticles was carried out using different dilutions of Calendula officinalis homeopathic mother tincture, keeping the concentration of NaAuCl₄.2H₂O solution constant as a function of pH.

Characterization of Cm@AuNp

The Cm@AuNp was characterized for optical properties using UV-Vis spectrophotometer (Lab India, India). The morphology of Cm@AuNp was studied using SEM (Table tops SNE-3200M, USA). The X-ray diffraction pattern of Cm@AuNp was recorded using XRD (Bruker AXS D8 Advance, Germany) over 35°-75° with scan run 40/min, step size of 0.02° and Cu Kα radiation of λ=1.54Å. The hydrodynamic size distribution with poly-dispersity index (PDI) and zeta potential was analyzed using zeta sizer (Nano ZS90 model Malvern, Germany).

Density gradient centrifugation (DGC)

Sucrose density gradient method was lucratively used to fractionate anisotropic Cm@AuNp having different sedimentation rates. A discontinuous density gradient of sucrose solutions (5%, 10%, 15% and 20%) was developed upon one another. Colloidal solution of Cm@AuNp (5 mL) was added to the capacity vial and centrifuged at 5000 RPM for 15 min. Nanoparticles depending upon the size were confined to different layers of the sucrose density gradient. Each layer was separated using a sterile syringe and was further monitored for the determination of the size of separated nanoparticles using zeta sizer. Sedimentation coefficient S was calculated for each layer using the equation: 𝑆 = (𝜌𝑝 − 𝜌𝑚)d² / 18𝜂

DPPH radical scavenging activity

The anti-oxidative effect of sucrose gradient concentrations (5%, 10%, 15%, 20%) containing fractionated Cm@AuNp and native homeopathic mother tincture was determined using DPPH assay. Ascorbic acid (1 mM) was used as a positive control. The test samples (2 ml) were incubated with DPPH ethanolic solution (1 ml; 1 mM). The contents after vigorous mixing were allowed to stand for 30 min at room temperature. The absorbance was measured at 517 nm and the free radical scavenging activity was calculated using the formula: (C-T)/C × 100

Where, C is absorbance of control and T is the absorbance of the test sample.

RESULTS AND DISCUSSION

Optimized experimental conditions of bio-fabricated gold nanoparticles were as follows: Calendula officinalis homeopathic mother tincture with 40% dilution (1 ml), sodium tetrachloroaurate dehydrates solution (1 ml; 1 mM) and sonication (15 min; 20 KHz) at pH 8. The conversion of Au (III) to its elemental form (Au°) may be ascribed to the presence of flavonoidal moieties present in Calendula officinalis homeopathic mother tincture which is nothing but an ethanolic extract of the plant Calendula officinalis. The visual change in color from pale yellow to ruby red indicated the bio-fabrication of target nanoparticles. Calendula officinalis extract has been reported to contain a series of polyphenolics flavonoidal compounds namely quercetin, isorhamnetin, isoquercetin, narcissin, isorhamnetin-3-O-β-D-glycoside, calendoflaside, calendoflavoside, calendoflavobioside, rutin, isoquercitrin, neohesperidoside, isorhamnetin-3-O-neohesperidoside, isorhamnetin-3-O-2G-rhamnosyl rutinoside, isorhamnetin-3-O-rutinoside, quercetin-3-O-glucoside and quercetin-3-O-rutinoside [28-30]. The bio-fabrication of Cm@AuNp using polyphenolics (flavonoids) present in the homeopathic mother tincture can be explained by the following reaction:

Flavonoidal content not only reduce Au³⁺ to Au⁰ but also get coated (capping) on the freshly generated Cm@AuNp and thus adding their medicinal properties [24].

Characterization of gold nanoparticle UV-Vis spectrophotometer

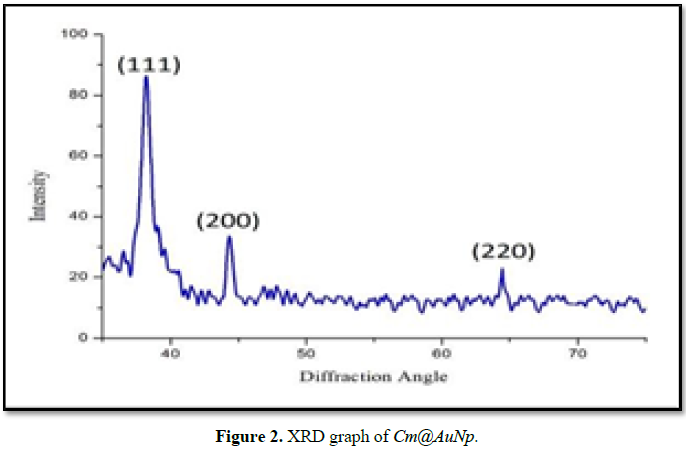

Bragg diffraction peaks 2θ appeared at 38.17°, 44.23° and 64.29° in the bio-fabricated Cm@AuNp (Figure 2). It could be indexed to (111), (200) and (220) having lattice planes of face-center cubic compared with (JCPDS file 04-0784). The intensity of the diffraction peaks (200) and (220) were found lower than the corresponding crystallographic plane (111). The fact established that the lattice plane (111) is the transcendent crystallographic plane and is more reactive because of its high atom density [31].

SEM

SEM images (Figure 3) acquired from the drop-coated film of nanoparticles indicated their polydisperse spherical shaped morphology.

Dynamic light scattering

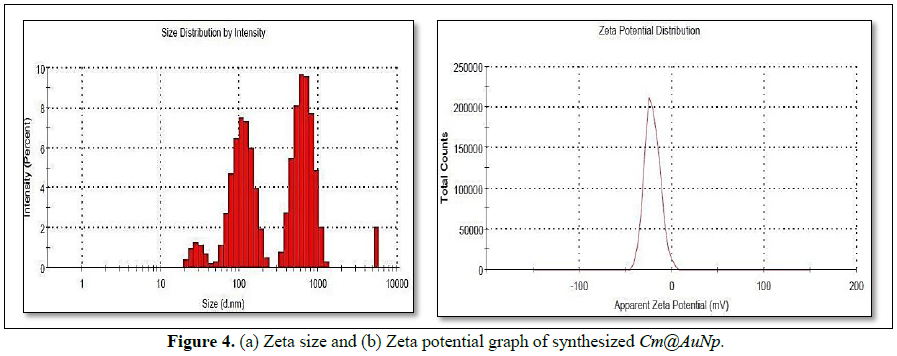

The dynamic light scattering (DLS) spectrum highlighted the asymmetric distribution of nanoparticles mainly in the range (21 to 1281 nm) with poly-dispersive index 0.664 and intercept 0.922 (Figure 4a). However, a little population was extended in the range of 6000 nm. The average hydrodynamic size (Z-Average) of Cm@AuNp was found to be 265.6 nm. Zeta potential of Cm@AuNp determined in water medium as a dispersant was -20.8 mV (Figure 4b). The magnitude of observed high negative charge on the bio-fabricated nanoparticles might be acting as a repulsive barrier, avoiding aggregation of nanoparticles.

Density gradient centrifugation (DGC)

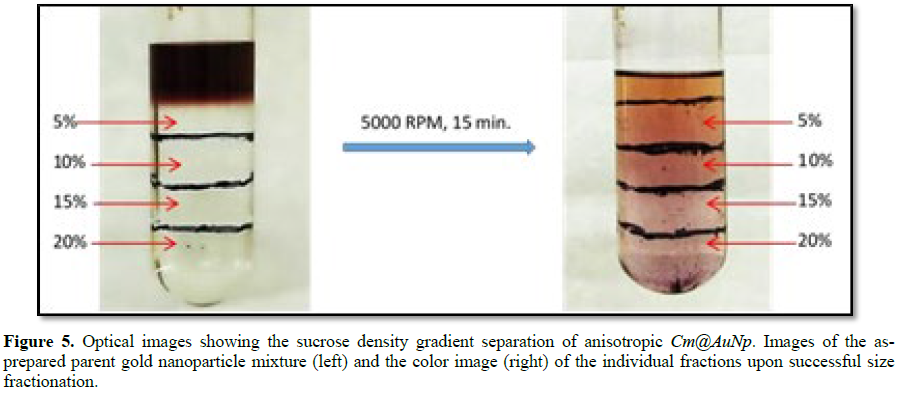

The size fractionation of Cm@AuNp centrifuged at 5000 RPM for a fixed time (15 min) are shown in (Figure 5). Different bands obtained after the run indicated successful segregation of Cm@AuNp as per their sedimentation rates.

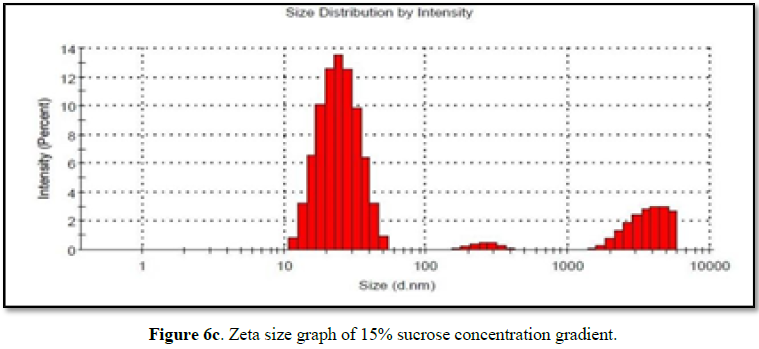

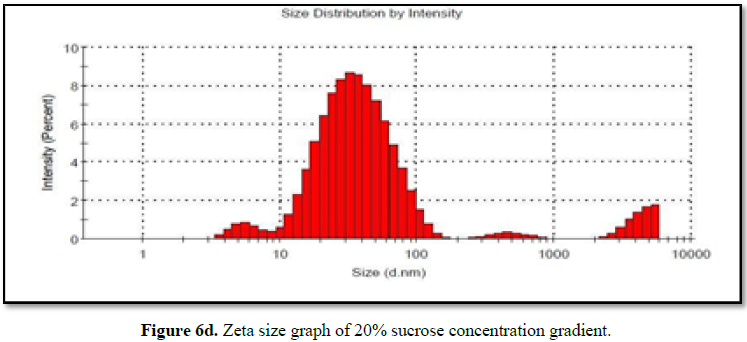

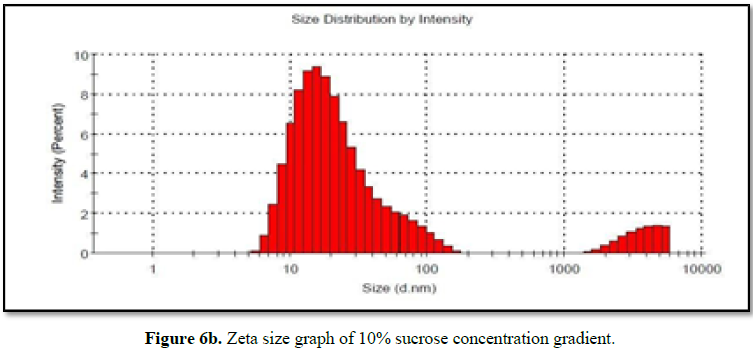

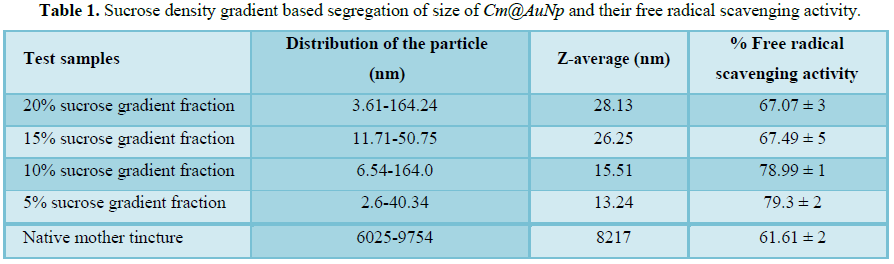

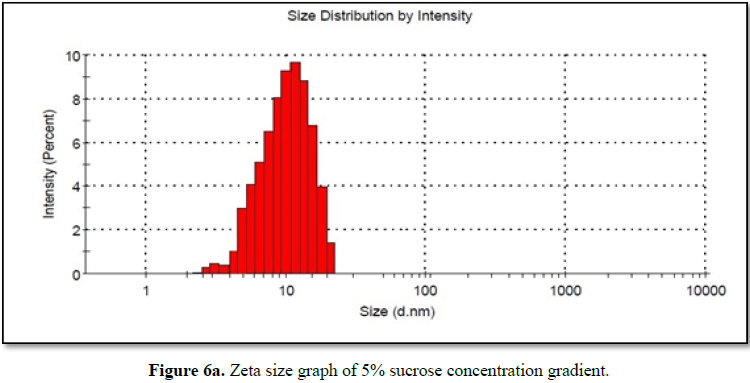

 Histograms of Cm@AuNp at different sucrose concentration gradient are shown in Figures 6a-6d. It represents the distribution of the nanoparticles confined at 5%, 10%, 15% and 20% sucrose concentration gradient. Table 1 indicates that particle size decreased in a concentration-dependent manner with larger particles occurring at higher sucrose density gradient (20%) while smaller at lower density gradient (5%). This reflects that the decrease in the size of the particle takes place with a dilution of a sucrose concentration gradient.

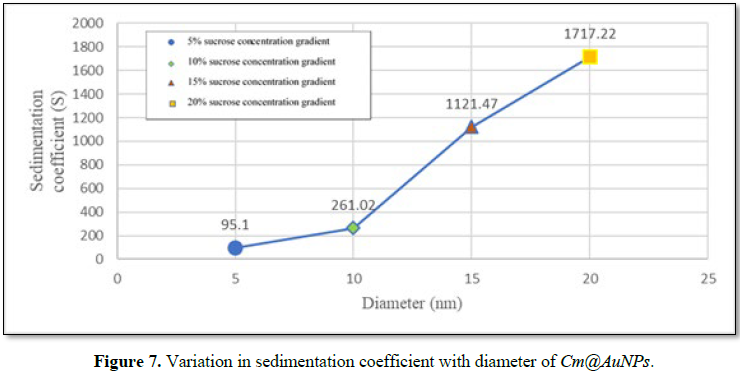

Sedimentation coefficients for Cm@AuNp at 5%, 10%, 15% and 20% sucrose concentration gradient (Figure 7) were 95.1 × 10^-3 s, 261.02 × 10^-3 s, 1121.47 × 10^-3 s and 1717.22 × 10^-3 s, respectively indicating faster sedimentation rate of heavier particles. Overall results obtained demonstrate the utility of density gradient technique to separate mixtures of different size distributions of nanoparticles to near monodispersity.

DPPH radical scavenging activity

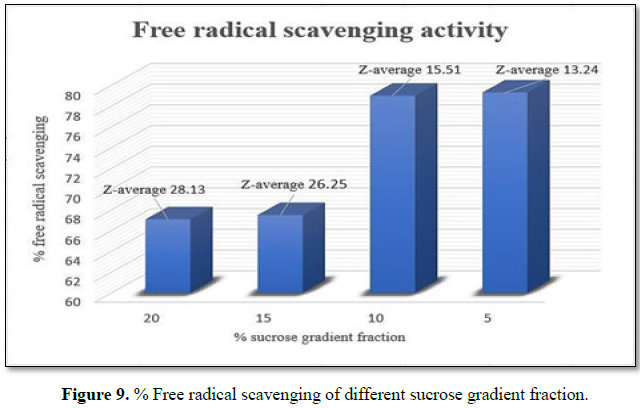

DPPH is a stable nitrogen-centered free radical, the color of which changes from violet to yellow upon the reduction by either the process of hydrogen or electron donation. Substances that perform this reaction can be considered as antioxidants and, therefore, radical scavengers [32]. Natural antioxidants (secondary metabolites of plants) are limited in their radical scavenging action; therefore, recent efforts are focused on the enhancement of the free radical scavenging activity of the natural antioxidants by synthesis of noble metal nanoparticles prepared from different plant extracts. In the present study Calendula officinalis homeopathic mother tincture was used to bio-fabricate gold nanoparticles. The free radical scavenging activity of different sucrose gradient fractions (20%, 15%, 10%, 5%) containing Cm@AuNp 5 ml each and native mother tincture was tested. As the size of Cm@AuNp decreases (20% to 5% sucrose gradient fraction) free radical scavenging activity increases which can be visualized by the change in color from dark brown to yellow exhibiting size dependent free radical scavenging activity (Figure 8). The fact finds support (Table 1) from the higher free radical scavenging activity of fractionated Cm@AuNp (Z-average (28.13 to 13.24 nm) compared to native Calendula officinalis homeopathic mother tincture (Z-average 8217 nm). A perusal of the Figure 9 further highlights that with the decrease of the size of Cm@AuNp (Z-average to 13.24 nm), the free radical scavenging activity is increased from (67.07% to 79.3%). However, sharp increase in the free radical scavenging activity has been observed with the change in the size of the nanoparticle (Z-average 26.25 to 15.51 nm). Free radical scavenging activity of segregated Cm@AuNp (5% sucrose gradient fraction), prepared from native Calendula officinalis homeopathic mother tincture overall reports 28.17% enhancement (Table 1). The observed enhancement in free radical scavenging activity may be assigned to the biocompatibility, astonishing optical properties related to surface plasmon resonance and high surface area to volume ratio (nanosizing) overall improving permeability in the cell membrane and higher accumulation of the Cm@AuNp.

The bio-fabricated gold nanoparticles embedded with flavonoids (Cm@AuNp) possibly might release 3 electrons for scavenging of 3 free radicals (enhancement) as depicted in the following reaction [33].

The simultaneous coating of polyphenolic flavonoids of Calendula officinalis extract on freshly prepared nanoparticles also contributes in the enhancement of free radical scavenging activity [24,26].

CONCLUSION

The present communication reports the bio-fabrication of Cm@AuNp using homeopathic mother tincture Calendula officinalis in a single step green method. After thorough characterization of bio-fabricated gold nanoparticles embedded with biomolecules of Calendula officinalis mother tincture (Cm@AuNp) have been fractionated into smaller sized gold nanoparticles using sucrose density gradient centrifugation method. The fractionated nanoparticles ranging in the size (Z-average 28.13 to 13.24 nm) are monitored for the effect of size of nanoparticles on the enhancement in the free radical scavenging activity (DPPH assay). The enhancement in free radical scavenging activity (28.17%) of minimum sized fractionated (Cm@AuNp: 5% sucrose gradient fraction) having Z-average 13.24 nm compared to native Calendula officinalis homeopathic mother tincture (Z-average 8217 nm) have been recorded.

ACKNOWLEDGEMENT

The authors gratefully acknowledge Prof. P. K. Kalra, Director, and Prof. Sahab Dass, Head Department of Chemistry, Dayalbagh Educational Institute for providing necessary facilities. Authors also thank Dr. Vijai Kumar, Advisor, Medical and Health Practices, Dayalbagh Educational Institute for discussions.

1.       Oberbaum M, Vithoulkas G, Haselen RV (2003) Clinical trials of classical homeopathy: Reflections on appropriate research designs. J Altern Complement Med 9: 105-111.

2.       Upadhyay RP, Nayak C (2011) Homeopathy emerging as nanomedicine. Int J High Dilution Res 10: 299-310.

3.       Upadhyay RP (2003) A strategy for structural exploration of homeopathic medicine. Front Perspect 12: 7-8.

4.       Robertson JD, Patikarnmonthon N, Joseph AS, Battaglia G (2014) Block copolymer micelles and vesicles for drug delivery in engineering polymer systems for improved drug delivery. United States of America: John Wiley & Sons, Inc., Hoboken.

5.       Chithrani BD, Ghazani AA, Chan WC (2006) Determining the size and shape dependence of gold nanoparticle uptake into mammalian cells. Nano Lett 6: 662-668.

6.       Owens DE, Peppas NA (2006) Opsonization, biodistribution and pharmacokinetics of polymeric nanoparticles. Int J Pharm 307: 93-102.

7.       Pegoraro C, Cecchin D, Madsen J, Warren N, Armes SP, et al. (2014) Translocation of flexible polymersomes across pores at the nanoscale. Biomater Sci 2: 680-692.

8.       Hurst SJ, Lytton-Jean AKR, Mirkin CA (2006) Maximizing DNA loading on a range of gold nanoparticle sizes. Anal Chem 78: 8313-8318.

9.       Avila-Olias M, Pegoraro C, Battaglia G, Canton I (2013) Inspired by nature: Fundamentals in nanotechnology design to overcome biological barriers. Ther Deliv 4: 27-43.

10.    Yoo JW, Mitragotri S (2010) Polymer particles that switch shape in response to a stimulus. Proc Natl Acad Sci 107: 11205-11210.

11.    Powers KW, Palazuelos M, Moudgil BM, Roberts SM (2007) Characterization of the size, shape and state of dispersion of nanoparticles for toxicological studies. Nanotoxicology 1: 42-51.

12.    Narayanan R, El-Sayed MA (2004) Shape-dependent catalytic activity of platinum nanoparticles in colloidal solution. Nano Lett 4: 1343-1348.

13.    Jiang W, Kim BYS, Rutka JT, Chan WCW (2008) Nanoparticle-mediated cellular response is size-dependent. Nat Nanotechnol 3: 145-150.

14.    Zheng Y, Feng G, Shang T, Wu W, Huang J, et al. (2016) Separation of biosynthesized gold nanoparticles by density gradient centrifugation. Sep Sci Technol 52: 951-957.

15.    Latham AH, Freitas RS, Schiffer P, Williams ME (2005) Capillary magnetic field flow fractionation and analysis of magnetic nanoparticles. Anal Chem 77: 5055-5062.

16.    Duesberg GS, Burghard M, Muster J, Philipp G, Roth S (1998) Separation of carbon nanotubes by size exclusion chromatography. Chem Commun 3: 435-436.

17.    Lee JS, Stoeva SI, Mirkin CA (2006) DNA-induced size-selective separation of mixtures of gold nanoparticles. J Am Chem Soc 128: 8899-8903.

18.    Sun X, Tabakman SM, Seo WS, Zhang L, Zhang G, et al. (2009) Separation of nanoparticles in a density gradient: FeCo@C and gold nanocrystals. Angewandte Chemie 48: 939-942.

19.    Sweeney SF, Woehrle GH, Hutchison JE (2006) Rapid purification and size separation of gold nanoparticles via diafiltration. J Am Chem Soc 128: 3190-3197.

20.    Chen G, Wang Y, Tan LH, Yang M, Tan LS, et al. (2009) High-purity separation of gold nanoparticle dimers and trimmers. J Am Chem Soc 131: 4218-4219.

21.    Bai L, Ma XJ, Liu JF, Sun XM, Zhao DY, et al. (2010) Rapid separation and purification of nanoparticles in organic density gradients. J Am Chem Soc 132: 2333-2337.

22.    Lee SH, Salunke BK, Kim BS (2014) Sucrose density gradient centrifugation separation of gold and silver nanoparticles synthesized using Magnolia kobus leaf extract. Biotechnol Bioprocess Eng 19: 169-174.

23.    Sharma M, Yadav S, Srivastava MM, Ganesh N, Srivastava S (2018) Promising anti- inflammatory bio-efficacy of saponin loaded silver nanoparticles prepared from the plant M. longifolia. Asian J Nanosci Mater 1: 244-261.

24.    Yadav S, Sharma M, Ganesh N, Srivastava S, Srivastava MM (2019) Enhanced anti-melanoma bioefficacy of flavonoid loaded gold nanoparticles prepared from the plant Madhuca longifolia on the mice and human melanoma cell lines. J Applicable Chem 8: 833-843.

25.    Sharma M, Yadav S, Ganesh N, Srivastava MM, Srivastava S (2019) Biofabrication and characterization of flavonoid-loaded Ag, Au, Au-Ag bimetallic nanoparticles using seed extract of the plant Madhuca longifolia for the enhancement in wound healing bioefficacy. Prog Biomater 8: 51-63.

26.    Yadav S, Sharma M, Ganesh N, Srivastava S, Srivastava MM (2019) Bio active principle loaded gold nanoparticles as potent anti-melanoma agent: Green synthesis, characterization and in vitro bioefficacy. Asian J Green Chem.

27.    Afaq A, Gaur S, Sharma M, Yadav S, Srivastava S, et al. (2019) Application of sucrose density gradient Centrifugation for segregation of bio-fabricated gold nanoparticles using M. longifolia bark extract. J Applicable Chem 8: 1308-1315.

28.    Kurkin VA, Sharova OV (2007) Flavonoids from Calendula officinalis flowers. Chem Nat Comp 43: 216-217.

29.    Vidal-Ollivier E, Elias R, Faure F, Babadjamian A, Crespin F, et al. (1989) Flavonol glycosides from Calendula officinalis flowers. Planta Med 55: 73-74.

30.    Ukiya M, Akihisa T, Yasukava K, Tokuda H, Suzuki T, et al. (2006) Anti-inflammatory, anti-tumor-promoting and cytotoxic activities of constituents of marigold (Calendula officinalis) flowers. J Nat Prod 69: 1692-1696.

31.    Zhang G, Du M, Li Q, Li X, Huang J, et al. (2013) Green synthesis of Au-Ag Alloy nanoparticles using Cacumen platycladi extract. RSC Adv 3: 1878-1884.

32.    Medhe S, Bansal P, Srivastava MM (2014) Enhanced antioxidant activity of gold nanoparticle embedded 3,6-dihydroxyflavone: A combinational study. Appl Nanosci 4: 153-161.

33.    Zhou Z (2015) Studies on effect of stabilizers, chelators and inherent periodicity on nanoparticle antioxidant activity. Master’s thesis: Oregon State University.
